Packaging & delivery
Selling Units:
Single item
Single package size:
50X27X22 cm
Single gross weight:
21.000 kg
Picture Example:
Lead time:
|
Quantity(pieces)
|
1 - 100
|
101 - 200
|
>200
|
|
Lead
time (days)
|
10
|
15
|
To
be negotiated
|

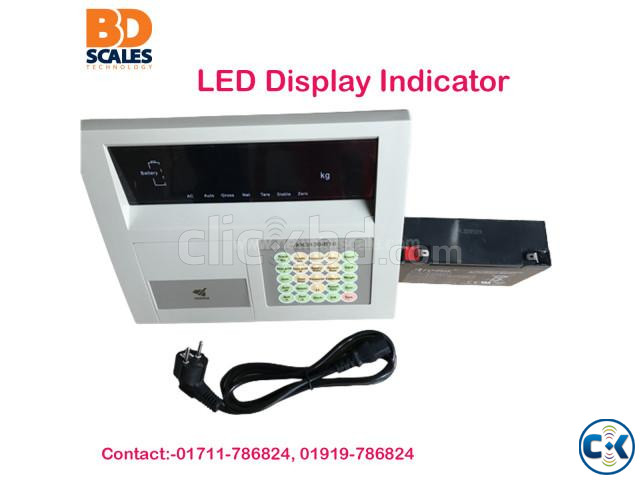

Weighing
indicator XK3190-A9+ adopts high precision ∑-Δ A/D conversion technology,
widely applied in electronic floor scale,electronic truck scale and so on alike
static weighing system equipped with 1~8 load cell.
Feature:
Compatible
with all functions of model XK3190-A9;
∑-Δ high
precision A/D conversion method, able to process input signal from -16mV to
18mV
Good
consistency, no need to re-calibrate a scale if change the former indicator,
high precision
DC power
socket with anti-connect and anti-short circuit protection;
With strong
anti-disturbance function
Standard
function
AC/DC power
supply, standard chargeable battery
7-bits 0.8
inch LED display, 3-level battery indications
Able to setup
zero-tracking range, zero(auto/manual) range
With 2-point
calibration correction function, 2 compensation calibration methods
Able to save
1001 weighing records, 1000 truck records consisting of truck ID and
corresponding tare weight, 201 records of goods
Able to print
across and upright weighing bill
Able to print
different statistical reports
Standard RS232
communication interface(RS422/RS485 optional)
Standard
scoreboard interface with current loop
Standard
parallel print interface
Able to
connect assigned thermal printer
XK3190-A9+P
with built in printer
Technical
parameter
A/D conversion
method: ∑-Δ
Input signal
range:-16mV~18mV
A/D conversion
speed: 10times/sec.
A/D conversion
code: 1 million code
Load cell
excitation: DC 5V
Max.
connection number of load cell: 8 at 350 ohm/16 at 700 ohm
Load cell
connection mode: 6 wire, auto compensation for long distance
Division:
1/2/5/10/20/50/100 optional
Clock: real
clock without effect when power off
Transimission:
current loop/RS 232 signal
Baud rate:600
Transimission
distance:≤30 meters
Serial
communication:interface
Transimission
method:RS232/RS422(optional)/RS485(optional)
Baund
rate:600/1200/2400/4800/9600(optional)
Transmission
distance:RS232:≤30 meters;RS422/RS485:≤1200 meters
Print
interface
Standard
parallel output interface
Built-in
micro-printer(A9+P)
Data storage:1000
truck records consisting of truck ID and corresponding tare weight
201cargo ID.1001 weighting records
Power
supply:AC 220V(-15%-+10%);50Hz(-2%-+2%)
DC 6V/10Ah
External battery rechargeable.
|
