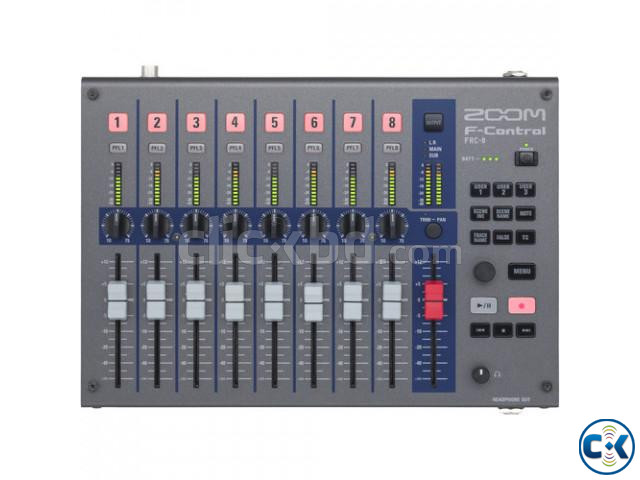

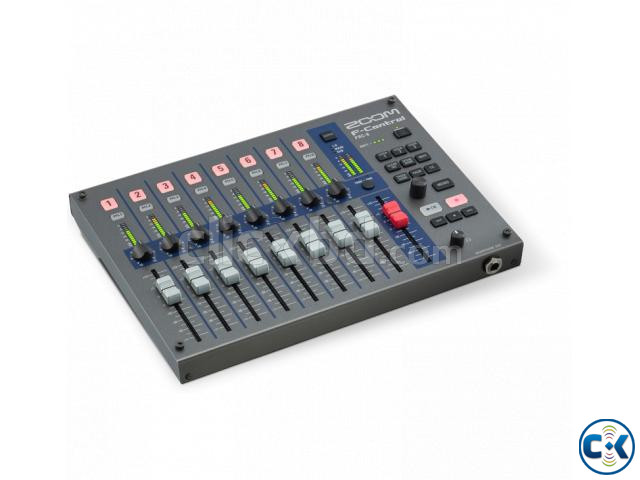

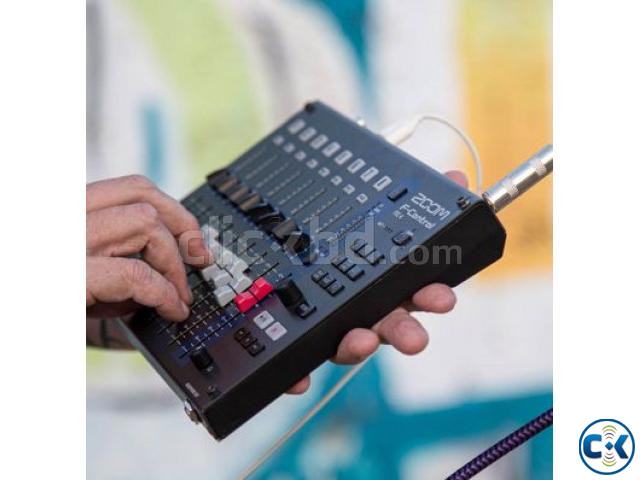

Zoom F-Control & Sound Controler

FEATURES OF THE F-CONTROL
9 faders (eight + Master), each 60mm
1/4" Headphone jack

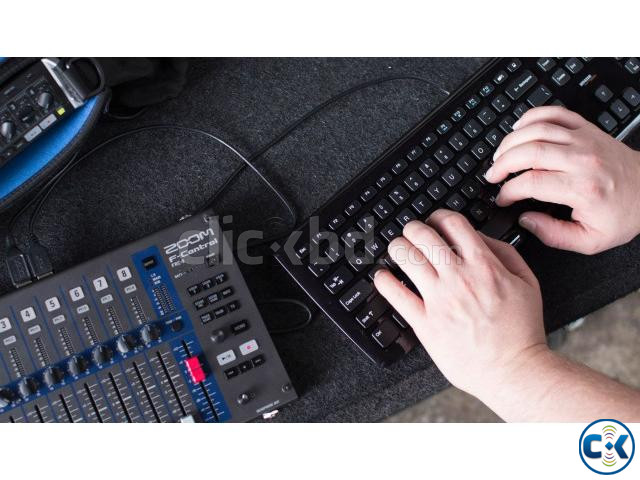

USB port for external keyboard connection
Hands-on input/output control for trim, pan,
and track arming
12-segment LED meters for monitoring channel
and output levels
Dedicated time code buttons
Track Scene edit buttons: Shortcut commands
to Track Name, Scene Increment, Scene Name,
Notes, and False Take screens
Power options: 4 x AA batteries, 4-pin HIROSE
connector with external battery pack, and USB
bus power via the F4 (not available with the F8)
Durable metal chassis
Compatible with Zoom F8 and F4 MultiTrack
Field Recorders
SPECS
POWER REQUIREMENTS: AA size (LR6) battery x 4
External DC power supply 9–16 V
BATTERY OPERATION TIME:
Alkaline batteries: 8.5 hours or more
NiMH (2450mAh): 12 hours or more
Lithium batteries: 16.5 hours or more
CONNECTORS: TO F Series: USB (Type A)
Keyboard: USB (Type A)
From F-Series Headphone: 1/4" unbalanced stereo phone
Headphone: 1/4" unbalanced stereo phone
9-16V DC IN: HIROSE HR10A-7R-4S 4-pin connector (1 pin: −, 4 pin: +)
POWER CONSUMPTION: 2.5 W
DIMENSIONS: 9.6 in (W) x 7.11 in (D) x 1.8 in (H)
WEIGHT: 2.16 lbs (without batteries)
