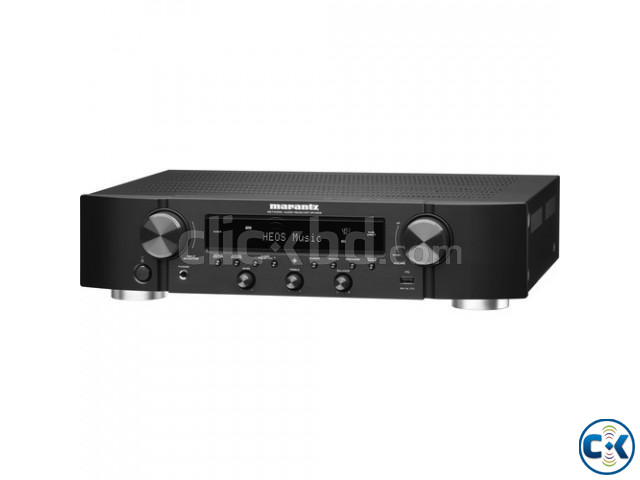

Marantz NR1200 2.1-Channel 4K Network Stereo AV Receiver

CHANNELS 2.1

POWER OUTPUT PER CHANNEL 2-Channel Driven: 75 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 100 W at 6 Ohms / 1 kHz / 0.7% THD 1-Channel Driven: 150 W at 6 Ohms / 1 kHz / 10% THD

FREQUENCY RESPONSE 10 Hz to 100 kHz +1/-3 dB (Direct Mode)

SPEAKER IMPEDANCE 4 to 16 OhmsAudio Processing

AURO 3D SUPPORT No

SUPPORTED FILE FORMATS 2.8 MHz DSD, 5.6 MHz DSD, AAC, Apple Lossless, FLAC, MP3, WAV, WMA via USB/NetworkVideo

HDR COMPATIBILITY HDR10, Hybrid Log Gamma

PASS-THROUGH SUPPORT 4K60p 4:4:4 (3D, BT.2020)

UPSCALING None

GUI YesConnectivity

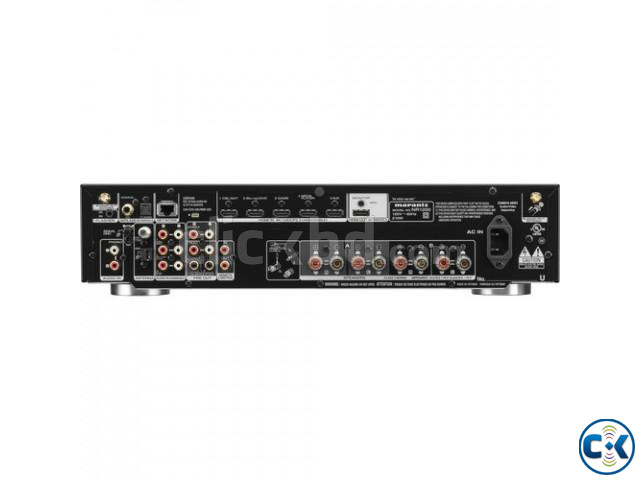

REAR A/V INPUTS 5 x HDMI 1 x Optical TOSLINK 1 x Digital Coaxial 3 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw

REAR A/V OUTPUTS 1 x HDMI 1 x Stereo RCA Zone 2 Pre-Out 1 x Stereo RCA Pre-Out 2 x RCA Subwoofer Pre-Out

FRONT I/O 1 x USB Type-A 1 x 1/4" / 6.35 mm Headphone Output

OTHER REAR I/O 2 x Bluetooth/Wi-Fi Antenna Terminal 1 x RJ45 (Ethernet) 1 x FM Antenna Terminal Input 1 x AM Antenna Terminal Input 1 x 1/8" / 3.5 mm (IR) Input

SPEAKER CONNECTORS 4 x Binding Post Pairs

HDCP SUPPORT Version 2.3

AUDIO RETURN CHANNEL (ARC) Yes

HDMI CEC Yes

MEDIA CARD SLOT None

A/B SPEAKER SELECTION Yes

BI-AMP CAPABILITY No

INPUT SENSITIVITY Line: 130 mV Phono: 2.5 mV

SIGNAL TO NOISE RATIO Line: 98 dB (Direct Mode / IHF-A) Phono: 74 dB (IHF-A)Wireless Connectivity

WI-FI Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)

WIRELESS SECURITY WEP 64, WEP 128, WPA, AES, TKIP

BLUETOOTH 4.1

BLUETOOTH PROFILES A2DP 1.2, AVRCP 1.5

SUPPORTED AUDIO CODECS SBC

BLUETOOTH RANGE 98.4' / 30 m

WIRELESS AUDIO PROTOCOLS AirPlay 2, HEOSControl

EXTERNAL CONTROL SUPPORT Domotz Pro, Ihiji Invision

VIRTUAL ASSISTANT SUPPORT Amazon Alexa, Apple Siri, Google AssistantTuner Section

TUNER TYPE AM, FM

NUMBER OF TUNER PRESETS 56 Stations

RADIO FREQUENCIES AM: 520 to 1710 kHz FM: 87.5 to 107.9 MHz

SENSITIVITY AM Effective: 18 µV FM Effective: 1.2 µV / 12.8 dBf FM Mono at 50 dB: 2.8 µV / 20.2 dBf

SIGNAL TO NOISE RATIO FM: 67 dB (Direct Mode / IHF-A / Stereo) 70 dB (Direct Mode / IHF-A / Mono)Power

AC INPUT POWER 120-220 VAC, 60 Hz

POWER CONSUMPTION Active: 210 W Standby: 0.2 W CEC Standby: 0.5 WPhysical

DIMENSIONS (W X H X D) 17.3 x 6.9 x 14.9" / 44.0 x 17.5 x 37.8 cm (Antenna Up) 17.3 x 4.1 x 14.9" / 44.0 x 10.5 x 37.8 cm (Antenna Down)

WEIGHT 18.1 lb / 8.21 kgPackaging Info

PACKAGE WEIGHT 22.27 lb

BOX DIMENSIONS (LXWXH) 20.4 x 19.5 x 7.3"
