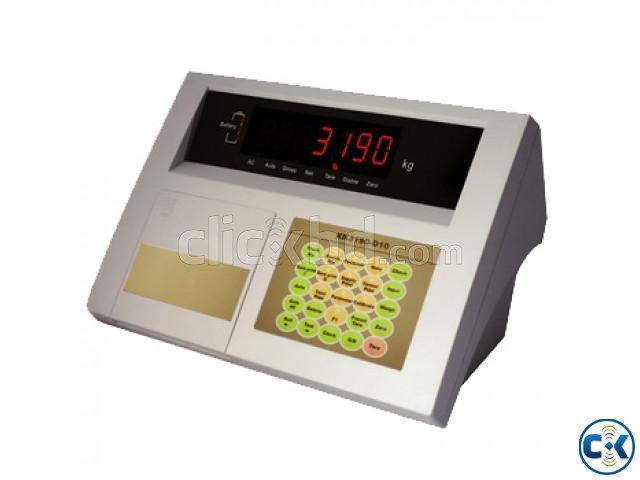

Digital Indicator XK3190 D10

Asking Price:
Tk. 23,000


Seller:
BDScalesTechnology
Member since 11 Jul 2016
Location:
Motijheel, Dhaka
Payment:
Face-to-face transaction
Return:
Not offered
Do not pay before verifying
    Category: Everything Else > Services > Industrial > > Digital Indicator XK3190 D10

    DESCRIPTION ( Digital Indicator XK3190 D10 )



    Item Specifications

    01.

    Product Code

    D10

    02.

    Warranty Period

    One Year

    03.

    Model

    XK 3190-D10

    04.

    Stock

    In Stock

    05.

    Origin

    China (Jiangsu)

    06.

    Discount

    None

    07.

    Accessories

    Available

    08.

    Brand

    YAOHUA





    Weighing indicator XK3190-D10q adopts high precision ∑-Δ A/D conversion technology, widely applied in electronic floor scaleelectronic truck scalestatic railway scale and so on alike static weighing system equipped with 1~8 load cell.



    Features:

    AC/DC power supply

    User-defined printing content and format:

    User-defined printing format, and be able to connect with serial printing interface and thermal printer

    Reliable shield and anti-jamming:

    Adopts hardware for shielding and reduces external-jamming and damage of interface



    Standard function

    High precision A/D conversion with readability 1/30000

    Auto change division among 3 different weighing ranges set up by user

    Non-linearity correction, calibration tolerance correction

    Password management and time power off function

    Able to set up print function for auto/manual; no condition/under condition; daily/sorted statistics report printing

    Weighing data save/check/delete/ protection in case of power off

    Able to edit English letter referring to a numeric-letter table (like ASCII table), able to download English letter through PC;

    Standard RS232 communication interface with selectable baud rate and communication method(RS422/RS485 optional)

    Standard scoreboard interface with current loop(20mA)method and standard parallel printer interface

    Able to print goods name, customer name, company name and notes in English

    Standard and user-defined printing format in horizontal, vertical and record format etc

    Able to save 1501 weighing records, 1500 truck records consisting of truck ID and corresponding tare weight; 201 goods records consisting of goods ID, goods name; 100 customer records consisting of customer ID, customer name, note info

    Able to print any parameter of indicator for saving and referring

    Hardware detection and voltage of load cell output displaying function



    Technical parameter

    A/D conversion method: ∑-Δ

    A/D conversion speed: 200 times/sec

    Input signal range:-30mV30mV

    Max. connection number of load cell: 8 at 350 ohm or 16 at 700 ohm

    Load cell connection mode: 6 wire, auto compensation for distance≤50 meters

    Verified counts: 3000

    Readability:30,000

    Max.internal reaolution:600,000

    Display: 7 bits LED display 7 status indications,3  power indicators

    Clock: real clock without effect when power off

    Scoreboard interface (Standard)

    Serially sending by 20mA current loop with baud rate 600,transmiaaion distance≤2000 meters

    Communication interface( RS232 C standard; RS422 optional)

    Serial communication interface, with selectable baud rate by continuous sending method or on command method

    Print interface (Standard)

    Parallel sending, able to connect with wide-line printer model KX-P1121KX-P1131LQ300K; micro printer for model D10P

    Power supply: AC 187~242V,49~51Hz; DC 6V/10Ah battery
