Item Specifications
|
|
01.
|
Product Code
|
D10
|
|
02.
|
Price
|
22000
|
|
03.
|
Warranty Period
|
One Year
|
|
04.
|
Model
|
XK 3190-D10
|
|
05.
|
Stock
|
In Stock
|
|
06.
|
Origin
|
China (Jiangsu)
|
|
07.
|
Discount
|
None
|
|
08.
|
Accessories
|
Available
|
|
09.
|
Brand
|
YAOHUA
|

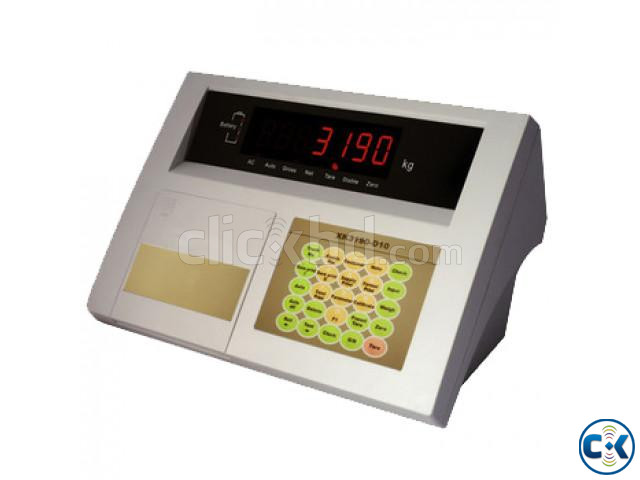

Description Weighing indicator
Control instrument XK3190-D10 Introduction Weighing indicator
XK3190-D10 adopts high precision ∑-Δ A/D conversion technology, widely applied
in electronic floor scale,electronic truck scale,static railway scale and so on
alike static weighing system equipped with 1~8 load cell. Features: AC/DC power supply User-defined printing
content and format: User-defined printing
format, and be able to connect with serial printing interface and thermal
printer Reliable shield and
anti-jamming: Adopts hardware for
shielding and reduces external-jamming and damage of interface Standard function High precision A/D
conversion with readability 1/30000 Auto change division
among 3 different weighing ranges set up by user Non-linearity
correction, calibration tolerance correction Password management
and time power off function Able to set up print
function for auto/manual; no condition/under condition; daily/sorted statistics
report printing Weighing data
save/check/delete/ protection in case of power off Able to edit English
letter referring to a numeric-letter table (like ASCII table), able to download
English letter through PC; Standard RS232
communication interface with selectable baud rate and communication
method(RS422/RS485 optional) Standard scoreboard
interface with current loop(20mA)method and standard parallel printer interface Able to print goods
name, customer name, company name and notes in English Standard and
user-defined printing format in horizontal, vertical and record format etc Able to save 1501
weighing records, 1500 truck records consisting of truck ID and corresponding
tare weight; 201 goods records consisting of goods ID, goods name; 100 customer
records consisting of customer ID, customer name, note info Able to print any parameter
of indicator for saving and referring Hardware detection and
voltage of load cell output displaying function Appearance: Technical parameters A/D conversion method:
∑-Δ A/D conversion speed:
200 times/sec Input signal
range:-30mV~30mV Max. connection number
of load cell: 8 at 350 ohm or 16 at 700 ohm Load cell connection
mode: 6 wire, auto compensation for distance≤50 meters Verified counts: 3000 Readability:30,000 Max.internal
reaolution:600,000 Display: 7 bits LED
display 7 status indications,3 power indicators Clock: real clock
without effect when power off Scoreboard interface
(Standard) Serially sending by
20mA current loop with baud rate 600,transmiaaion distance≤2000 meters Communication
interface( RS232 C standard; RS422 optional) Serial communication
interface, with selectable baud rate by continuous sending method or on command
method Print interface
(Standard) Parallel sending, able
to connect with wide-line printer model KX-P1121,KX-P1131,LQ300K; micro printer
for model D10P Power supply: AC
187~242V,49~51Hz; DC 6V/10Ah battery www.bdscale.com Thanks & Best
