TECHNICAL SPECIFICATIONS
Multichannel Surround
DTS HD Master / DTS:X Yes / Yes
DTS Neo:X / DTS Neural:X No / Yes
DTS Virtual:X Yes
Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization Yes / Yes / Yes (update)
Dolby ProLogic Ilz / Dolby Surround No / Yes
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 7.1
Dolby Height Virtualization Yes
Sound Enhancements
Discrete Power Amplifier Yes
Pure Direct Yes
Audyssey MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Compressed Audio Restorer Yes
Network
Media Server Yes
HEOS Wireless Multi-Room Technology Yes
Bluetooth Re-transmit for Bluetooth headphones Yes (update)
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless playback Yes (FLAC, WAV ,ALAC ,DSD)
Internet Radio Yes (TuneIn)
Spotify* Yes (connect)
Pandora Yes
SiriusXM* Yes
Other Streaming Services * Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
HEOS App Control Yes
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
Multi-room CI
Multi-Room Zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes
Remote In / Out Yes / No
HDMI Diagnostics Yes
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT
FL Display 1 line
Graphic User Interface - GUI Hybrid GUI
GUI Languages 3
Setup Assistant Yes
Quick Select Plus / Quick Select Yes / No
Firmware Update by: Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
ECO Mode Yes
Auto Power Off Yes
Sleep Timer Yes

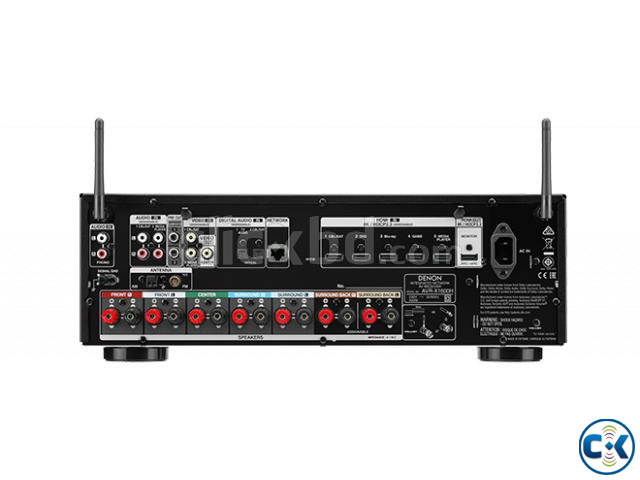

Inputs Outputs
Composite In / Out 2 / 1
HDMI In / Out 5+1 / 1
Analog In/out 2 / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 1
Multi-room Out: Analog / Digital 1 / 0
Multichannel Preout Yes (0.2) / No
Subwoofer Out 2
Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes
Number of Speaker Terminals 7
Speaker A / B assignable
Bi-amp Drive assignable
Multi-Room Speaker Terminal assignable
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
Specifications
Number of Power Amps 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 80 W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 120 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 175 W
General
System Remote Control RC-1227
Power Consumption in W 430
Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in Inches
Antenna: Vertical: (W x D x H) in Inches
W/O Antenna: (W x D x H) in Inches 17.1× 13.3 × 6
( 17.1 x 13.3 x 8.5)
Carton Dimensions (Packaging) (W x D x H) in Inches) 20.6 x 17.1 x 9.1 (in)
Weight in LBS 19
Weight in LBS (Packaging) 23.4
Power Supply AC 120 V, 60 Hz
Speaker impedance 4 - 16Ω/ohms
Input sensitivity 200 mV
Frequency response 10 Hz - 100 kHz — +1, –3 dB (Direct mode)
S/N Ratio 98 dB (IHF-A weighted, Direct mode)
FM section (Tuning frequency range) 87.5 - 107.9 MHz
AM section (Tuning frequency range) 520 kHz – 1710 kHz
