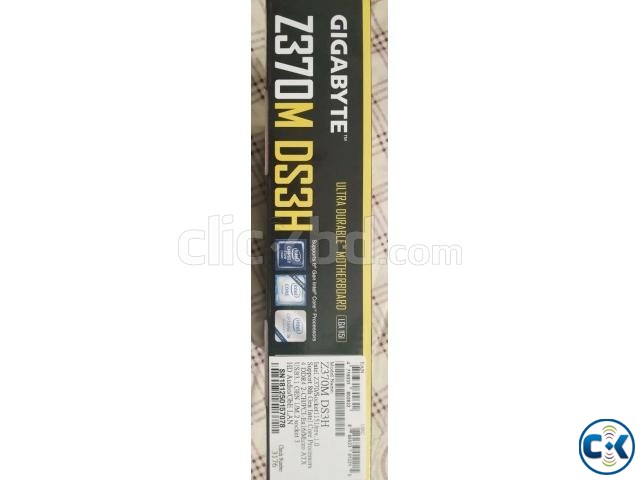

Gigabyte Z370M DS3H

New Intact Motherboard

ওয়ারেন্টি সহকারে সেল করা হবে।

১পিচ নিলে 7999/- টাকা এবং বেশি নিলে কিছু টাকা কনসিডার করা হবে।

এই অফার সীমিত সময়ের জন্য।

Specification:

Basic Information

Supported CPU Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors in the LGA1151 package

L3 cache varies with CPU

Chipset Intel® Z370 Express Chipset

BIOS 2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for Dual BIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor Micro ATX Form Factor; 22.6cm x 19.3cm

Expansion Slots

PCI 1 x PCI Express x16 slot, running at x16

2 x PCI Express x1 slots

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

Memory

Type 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

Slots Dual channel memory architecture

Supported Memory Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.)

/ 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.)

/ 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Mamory 64 GB

Graphics

Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Max Shared Memory 1GB

Connector & Ports

HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

USB (s) 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

LAN Port (s) Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

Warranty Information

Manufacturing Warranty 03 years

Description :

Gigabyte Z370M DS3H Micro ATX Ultra Durable 8th Gen i3, i5 & i7 processor supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface. Considering the graphics, it will support integrated Intel HD Graphics and up to 1GB shared graphics memory. This latest motherboard has the facility of HDMI, USB, LAN and High Definition Audio connectivity.
