High Pressure Hot Water Steam Cleaner

SAFETY INSTRUCTIONS

Please read carefully

Do not direct steam at people, animals, or at electrical devices. Do not operate the machine without water in the tank.

Do not allow the machine to run unattended at any time. Close supervision is necessary when this machine is used near children. Do not

allow it to be used as a toy. The machine is designed for household use only, do not expose to rain. Do not overfill the water tank. The machine contains a maximum of 1500ml of water only. Excessive filling of the water tank may cause damage of injury. Never turn the machine over or tilt more than 45 when it is switched on or if its
still producing steam. Never use this machine to clean electronic devices or installations Do not run steam cleaner for more than 1 hour at a time. Use extra care when cleaning on stairs. Do not immerse the cord, plug or machine in water or any other liquid. Do not operate with a damaged cord, if the power cord is damaged or any

1mproper performance or this machine occurs it should be repaired by a qualified electrician only. Keep hair, loose clothing, fingers, feet, and all parts of the body away from the jet o steam. Do not operate the machine in bare feet or when wearing open-toe shoes or sandals. Do not pull or carry by cord, use the cord as a handle, close door on cord or pull cord

around sharp edges or corners. Keep cord away from heated surfaces. Unplug cleaner when not in use. Turn all controls olf before unplugging from

mains. Do not unplug by pulling on cord. Always grasp the plug, not the cord. Never handle plug or appliance with wet hands. Store in a dry place. Do not expose the machine to freezing temperatures. Do not try to repair the appliance yourself. Contact a qualified technician. To avoid danger, a defective cable should be replaced only with an equivalent cable and by the manufacturer, our alter sales service or someone with a similar qualilicat ion

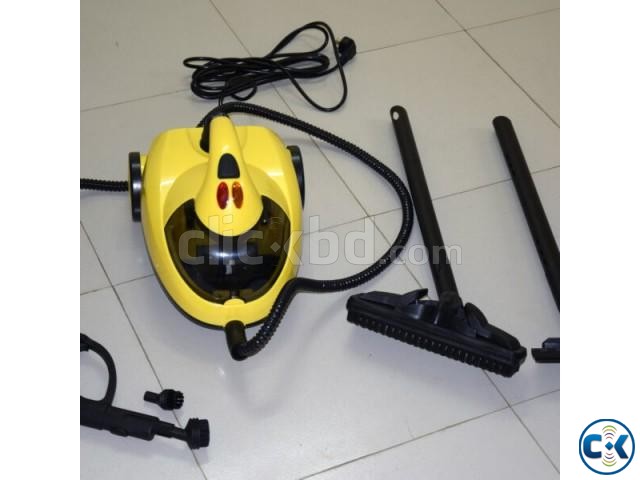

Machine accessories

01.Water tank

02.Wheels

03.Snap-on extension wands

04. Pressure cap
05. Carry handle
06. On/off switch
07. Operating indicator
08. Steam indicator light
09. Accessories store

10. Floor brush

11. Floor angled detail tool
12. Adaptor for accessories
13.Multi-purpose round brushes
14. High-pressure nozzle
15. Squeegee head

16. Steam gun
17. Steam trigger
18. Red safety button
19.Technical data: Mains supply:230V-50Hz,Power:1500W, Tank capacity: 1.5 litres. Fixed steam hose

20. Measuring jug, funnel and cleaning cloth

Preparing For Use

1. Make sure the machine is unplugged from the mains.
2. Unscrew the safety cap (2) by pushing down and turning anti-clockwise
3. Using the measuring jug and funnel (20) fill the machine with up to1600m of water (see pictures below). This should be sufficient to steam clean for approximately 1 hour.
4. Once full, replace the safety cap by turning clockwise, and fasten tightly
5. Attach the accessory or floor cleaning tool you require to the machine Now plug the machine into the mains (230V/50Hz) and switch on. Two
   lights should illuminate. The red light (5) is a power indicator. The orang9e
6. light (6) indicates that the machine is building up steam pressure. When the machine is first turned on this light will illuminate, and the machine willtake up to 12 minutes to reach the correct pressure level depending on the amount of water in the tank
