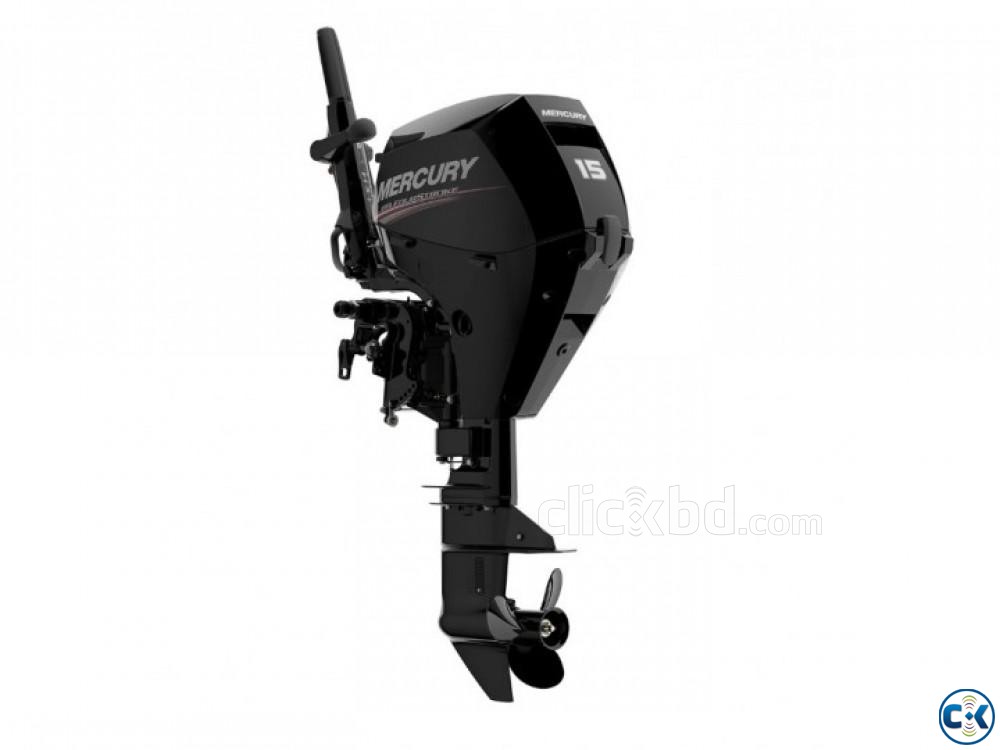

2020 Mercury 15 HP EFI 15MH Outboard Motor

For order and more information about our product list, please visit to our official website company : www.automartmarine.com



State of the art design of the 15 HP Mercury EFI outboard motor powerhead creates the low-end torque needed for power and fast planing making it an excellent source of power for medium to larger sized jon boats, skiffs, and inflatable boats. This ultra-lightweight motor is the first ever portable outboard with an ambidextrous tiller. Mercury Outboard Model: 15MH is a 103-lb.15 HP outboard motor, manual start with a 15 inch short shaft. Mercury outboard engines surpass industry standards and deliver power and fuel economy.


Shaft Length: 15" (Short)
Starting: Manual
SKU: 15MH-20EFI

Specs

MODEL 1A15201BK
MODEL YEAR 2020
SKU 15MH-20EFI
WEIGHT 103.0 lb
MANUFACTURER Mercury
COUNTRY OF MANUFACTURE Japan
HORSEPOWER 15hp
SHAFT LENGTH 15" (Short)
STEERING Tiller
STARTING Manual
TRIM & TILT Manual
FUEL DELIVERY EFI
FUEL TANK External
CYLINDER(S) 2
DISPLACEMENT 333 cc (20.3 cubic inches)
BORE AND STROKE 61 mm x 57 mm (2.402 in. x 2.244 in.)
FULL THROTTLE RPM RANGE 5700-6200
IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance
INDUCTION SCAVENGING SOHC
VALVES PER CYLINDER 2
FUEL TYPE 87 Octane (up to 10% ethanol content)
FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line
OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY 1 Quart (1000 ml)
LUBRICATION Trochoid Pump
ALTERNATOR 12V 138W 12A (standard on electric start models)
COOLING SYSTEM Water-Cooled, Thermostatically Controlled
SALTWATER RATED Yes
GEAR RATIO 2.15:1
GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)

Features

All New Tiller Handle
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
Tuned Intake for Quick Acceleration
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
"Wishbone" Mount for Reduced Vibration
3.2 Gallon Fuel Tank and Fuel Line
Easy Maintenance Canister Oil Filter
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner's Manual
Mercury Marine 5-Year Warranty

In The Box

Fuel Tank (3.2 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Owner's Manual & Tool Kit
