Product Description: 1. All products with original packaging box, so that can protect the products well on the shipping way avoid damage.
2. The product contain the battery because of the limitation of the airline company.
3. Warranty: All units are with Retail box. and we offer Long warranty period of 2 years,in two years will repair for free.
4. Shipping Way: if you need it faster, you can choose Aliexpress standard shipping,also have China post airmail
Product Specification: Features: The following major functions increase the product’s accuracy and usability: 1.The radiation coefficient may be adjusted to increase the measurement accuracy of objects with half reflection surface. 2.The highest temperature and lowest temperature cursor may guide the users to the areas with highest and lowest temperature of the thermal images. 3.The selectable color palette. Specification: | Brand name: | Smart sensor | | Display screen | 3.2†full angle TFT display screen | | Infrared image resolution | 200*160 | | Visible image resolution | 300,000 pixels | | Field angle/shortest focus length | 27°×35°/0.5m | | Thermal sensitivity | 0.07°C | | Temperature measurement range | -25℃ to 450℃(-13℉ to 842℉) | | Measurement accuracy | ±2%/±2℃ | | Emissivity | Adjustable from 0.01 to 1.0 | | Frame rate of thermal images | 9Hz | | Wavelength coverage | 8-14um | | Focus mode | Fixed | | Color palette | Rainbow,iron oxide red,cold color,black&white,white&black | | Storage medium | Built-in 3G | | File format | JPG | | USB | Micro USB 2.0 | | Power supply | Built-in rechargeable battery | | Automatic power-off time | Selectable:5 minutes/20 minutes/not power off automatically | | Product size(length×width×height) | 90mm×105mm×223mm | | Product weight | 389g | | Working temperature | 0℃ to 45℃ | | Storage temperature | -40℃ to 60℃ | | Relative humidity | <85%RH | | Package | see picture |
Diagram Description:

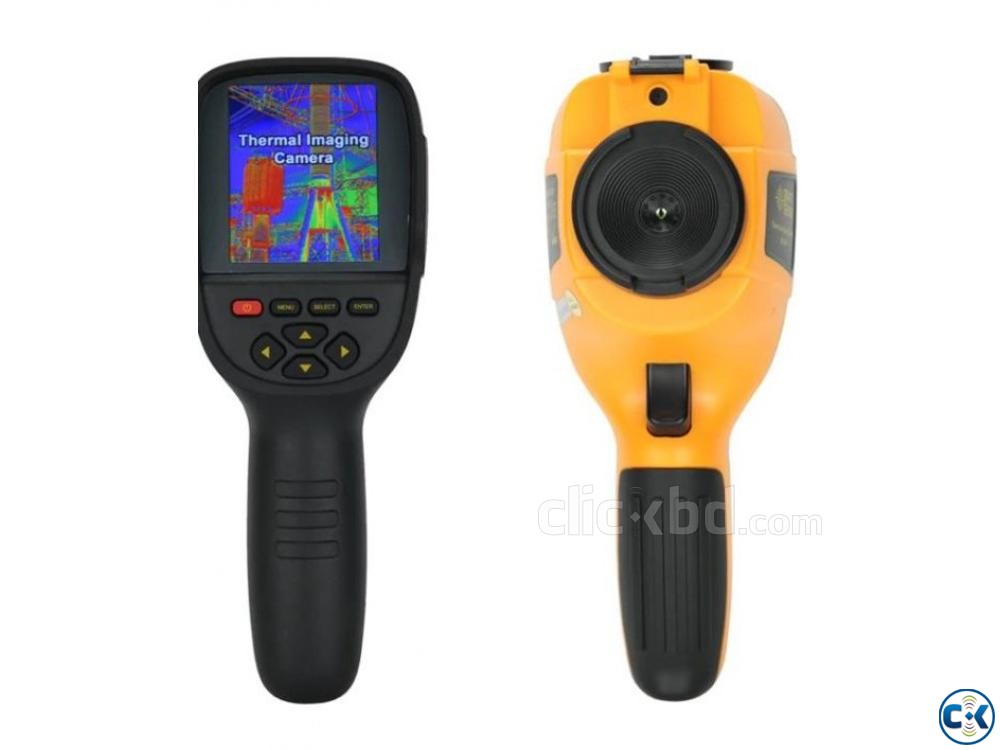

| 1.Visible light camera 2.Infrared imaging sensor 3.Image capture key 4.Micro USB |  | 1.Battery power 2.Current emissivity 3.Color code 4.Temperature cursor at central point 5.Time 6.Central point temperature 7.The lowest temperature cursor 8.The highest temperature cursor 9.Maximum value/minimum value of field temperature |  | 1.Menu key 2.Selection key 3.Enter key 4.Navigation key:UP.down,left and right 5.ON/OFF key |
Operation Instruction: | 1.Charging:the product is provided with built-in 18650 lithium battery.When the battery power is not sufficient,please charge it through Micro USB interface in time. | 2.ON/OFF key:hold down † †key to power on/off. | 3.Switching between infrared thermal image and visible image:pressâ€ †or “ “key to switch the degree of fusion between infrared thermal images and visible images(the degree of fusion is 0%,25%,50%,75% and 100%). | | 4.Image capture: press the image capture key.When the capture is successful,the screen will displayâ€store photo?â€prompt.If “yesâ€is selected,please pressâ€MENUâ€key to confirm to save the image.Ifâ€no†is selected,pressâ€SELECTâ€key to confirm not to save the image. | 5.The function to hide highest/lowest temperature column at the screen botton:under the operation after normal start up,press† “key and the screen bottom will display highest/lowest temperature column.Press† “can also hide it. | | 6.Image output:The saved images through capture may be checked and output by connecting with a computer through Micro USB |
|
