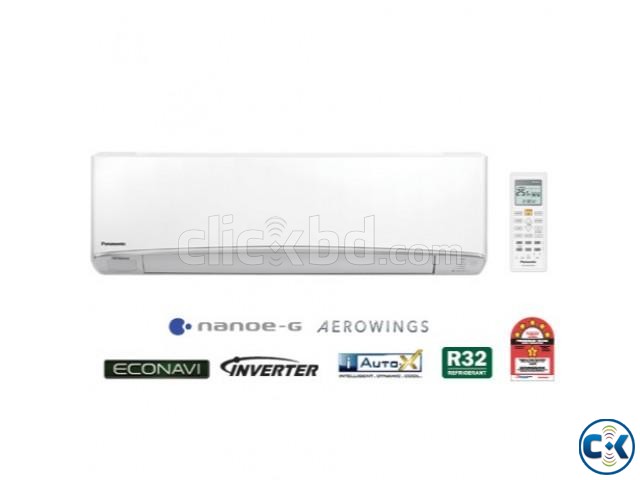

Panasonic Inverter 2.0 Ton Econavi CS-S24TKH AC

Panasonic Inverter  2.0 Ton  Econavi  CS-S24TKH AC

Brand: Panasonic

Origin: Japan

Assembled: Malaysia

Product Description:

• Inverter Technology
• Econavi (Intelligent Eco Sensor)
• Nanoe-G Dust Sensor(air purification system)
• Shower Cooling
• 5 Star Energy Rating
• 24,200Btu
• i Auto (Intelligent Auto Mode)
• Wide And Long Air Flow Vane
• Airflow Direction Control
• 24Hr On/Off Real Setting Timer
• Blue Fin Condenser
• Lcd Wireless Remote Controller
• Premium Inverter Deluxe Type
• INVERTER TECHNOLOGY
• QUICK COOLING, CONSTANT COMFORT, ENERGY SAVING.
• 7.0kW Cooling Only Inverter Air Conditioner

Speciation:

General                Indoor Unit        CS-S24TKH

Outdoor Unit     CU-S24TKH-1

Function              Cooling

PERFORMANCE                Cooling Capacity Rated Conditions (kW)                7

Cooling Capacity Range - Min ~ Max (kW)             2.00 ~ 7.70

EER (w/w)           3.23

Heating Capacity Rated Conditions (kW)                -

Heating Capacity Range - Min ~ Max (kW)            -

COP (w/w)          -

Star Rating - Cool / Heat                2

SPECIFICATIONS               Electrical Voltage (V)      240

Running Current - Cool / Heat (A)             9.1 / -

Power Input - Cool / Heat (kW) 2.17 / -

Sound Pressure Indoor - Cool - Hi / Lo / S-Lo (dB(A))        49 / 38 / 35

Sound Pressure Indoor - Heat - Hi / Lo / S-Lo (dB(A))       -

Sound Pressure Outdoor - Cool - Hi / S-Lo (dB(A))             52 / 47

Sound Pressure Outdoor - Heat - Hi / S-Lo (dB(A))            -

Sound Power Outdoor - Cool - Hi / S-Lo (dB)        66 / 61

Sound Power Outdoor - Heat - Hi / S-Lo (dB)       -

Quiet Mode - Indoor (dB)            35

Quiet Mode - Outdoor (dB)         47

Dehumidify (L/h)             4

Air Flow - Cool / Heat (L/s)           349 / -

Indoor Dimensions - H x W x D (mm)       290 x 1070 x 240

Outdoor Dimensions - H x W x D (mm)   795 x 875 x 320

Weight - Indoor (kg)       12

Weight - Outdoor (kg)   56

Refrigerant Pipe Diameter - Liquid Side / Gas Side (mm)                6.35 / 15.88

Piping Extension Length Min ~ Max (m) 3 ~ 30

Pipe Length for Additional Gas (m)          10

Additional Refrigerant (R410A) (g/m)      30

Power Supply    Outdoor

Operating Temperature Range - Outdoor - Cooling (˚C)  5 ~ 46

Operating Temperature Range - Outdoor - Heating (˚C) -

Warranty - Residential   5 Years Manufacturer's Warranty

FEATURES - Healthier Air              Nonoe-g Air Purifying System    -

Anti Bacterial Air Filter   Yes

Odour Removing Function           Yes

Removable, Washable Panel      Yes

FEATURES - Comfort       ECONAVI             -

AUTOCOMFORT               -

Inverter Control               Yes

Mild Dry Cooling               -

Powerful Mode                Yes

Economy Mode                Yes

Heating Operation Lower Limit (o C)        -

Cooling Operation Higher Limit (o C)        46

Soft Dry Operation Mode             Yes

Fan Mode           Yes

Remote Airflow Control (All directions)  Yes

Remote Airflow control (Up & Down)     -

Manual Horizontal Airflow Direction Control        -

Auto Changeover - Inverter        -

Automatic Operation Mode        Yes

Hot Start Control              -

FEATURES - Convenience             24-hour Dual On / Off Real Setting Timer               Yes

12-hour On / Off Timer  -

Demand Response Compatible Yes

3rd Party Connectivity   Yes

LCD Wireless Remote Controller               Large

Wired Remote Controller             Optional

FEATURES - Reliability    Blue Fin Condenser         Yes

Random Auto Restart    Yes

Long Piping (m) 30

Top-panel Maintenance Access Yes

Self Diagnostic Function                Yes

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Exclusive Warranty
1 Year Compressor Warranty
3 YEARS SERVICE WARRANTY

OUR ALL PRODUCT ARE BRAND NEW INTACT BOX
Home Delivery Is Available
Faster Delivery and Best Service
100% Genuine product.
Stock is Available.
