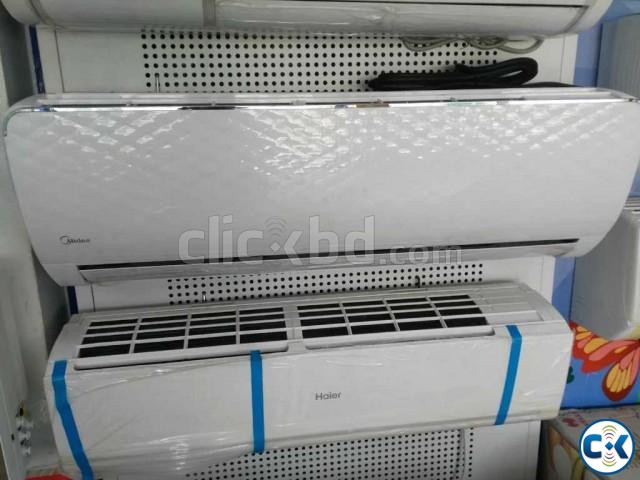

MIDEA 1.5 Ton Premier Hyper High-Wall
MODEL: MSM-18CRNLP
Physical
NET WEIGHT (LBS) 28.7
HEIGHT CONDENSING UNIT (INCHES) 27.64
DEPTH CONDENSING UNIT (INCHES) 14.29
WIDTH CONDENSING UNIT (INCHES) 33.27
HEIGHT EVAPORATOR (INCHES) 13.31
DEPTH EVAPORATOR (INCHES) 9.25
WIDTH EVAPORATOR (INCHES) 42.91
REFRIGERANT (OZ) R22/R410A/68.9
REFRIGERANT PIPING - LIQUID SIDE/ GAS SIDE MM(INCH) Φ6.35/Φ12.7(1/4"/1/2")
General
TYPE Premier Standard
AHRI # 8779203.0
ENERGY STAR Yes
Specification
AIR CIRCULATION HI / MED / LOW (CFM) 618/500/353
INDOOR NOISE LEVEL: HI/MED/LOW (DBA) 45/38/33
OUTDOOR NOISE LEVEL COOLING (DBA) 57.0
OUTDOOR NOISE LEVEL HEATING (DBA) 57.0
AIR DIRECTION HORIZONTAL (DEG ANGLE) Automatic
AIR FILTER (TYPE) Washable
CONNECTION (TYPE) Flare
COMBINED MINIMUM LENGTH (FEET) 10.0
COMBINED MAXIMUM LENGTH (FEET) 98.0
MAXIMUM VERTICAL DIFFERENTIAL (FEET) 66.0
CONNECTION PIPE SIZE SUCTION (INCHES) 0.5
CONNECTION PIPE SIZE DISCHARGE (INCHES) 0.25
CONDENSATION LINE SIZE (INCHES) 0.625
Electrical
VOLTAGE / PHASE / FREQUENCY 208-230V~ 60Hz, 1Ph
RECOMMENDED IN / OUT CABLE 16 AWG/4 Stranded, Unshielded
POWER USE RATED (COOL / HEAT) (KW) 1440 / 1640
MINIMUM CIRCUIT AMPACITY (AMPS) 17.0
RUNNING (COOL / HEAT) (AMPS) 6.3 / 7.2
RECOMMENDED FUSE SIZE (AMPS) 25.0
Performance
NOMINAL COOLING (BTU/H) 18000 (4500-18800)
NOMINAL HEATING (BTU/H) 18000 (5500-24000)
LOW TEMP HEATING @5°F (BTU/H) 18520.0
SEER (BTU / KW) 22.0
HSPF (BTU / KW) 10.5
HSPF5
EER (BTU / KW) 12.5
COOLING OPERATING RANGE (F ° DEGREES) -22-122
HEATING OPERATING RANGE (F ° DEGREES) -22-86
MOISTURE REMOVAL (PINTS/HOUR) /
Hyper heating operation down to -22 with up to 100% capacity. And with Universal Matching you can easily have 5 different units at different temperatures for maximum efficiency. Energy Star
Our energy-star rated product has been designed for maximum efficiency, helping you save on bills. Hyper Heating Operation
Premier Hyper Mini-Splits is a primary heat source, with Hyper Heating down to -22F, when it’s cold outside its warm inside.
Universal Matching
Modular install of up to 5 indoor units for every 1 outdoor unit, allowing you to set different temperatures in each room for ultimate comfort. Two Ways Draining
Install the drainage hose on the indoor unit from either the right or left side to suit your requirements.
Louver Position Memory
The air outlet louver will automatically move to the same position as was set the last time the unit was turned on. Golden Fin Anti-Corrosive Coating
The anti-corrosive coating on the condenser can withstand weathering from outdoors, preventing bacteria growth and improving overall heat transfer efficiency. Midea Smart Control-Enabled
