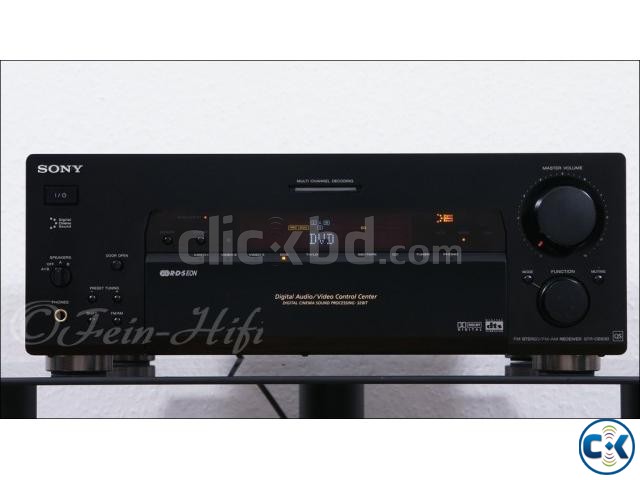

Sony Str DB-830

Audio System

Type AV receiver
Subcategory AV components
Functions AV receiver
Sound Output Mode 3D Sound
Built-in Decoders DTS decoder, Dolby Digital, Dolby Pro Logic
Surround Sound Effects Digital Cinema Sound Virtual 3D, Virtual Dolby Surround
Surround System Class 5.1 channel
Digital Sound Processor (DSP) Yes
DSP Preset Qty 27

Additional Features 4-ohm/8-ohm switch, A-B speaker switch, Jog Dial, gold plated connectors, multi-room audio output

Power Device

Frequency Require 60 Hz
Power Consumption Operational 120 Watt
Type power supply



Built-in Display

Type fluorescent


Amplifier

Output Power / Total 500 Watt

Amplifier Output Details

Output Power / Channel 100 Watt
Output Impedance / Channel 4/8 Ohm
Channel Type center, front, surround


Power

Form Factor integrated


Connections

Type 5.1 channel audio line-in, SPDIF input, SPDIF output, audio line-in, audio line-out, center speaker output, composite video/audio input, composite video/audio output, front speakers output, headphones, AM antenna, monitor output, rear speakers output, subwoofer output, FM antenna, S-Video input, S-Video output, S-link / Control-A1, S-link / Control-S (SIRCS)

Qty 2, 3, 4

Connector Type 4 pin mini-DIN, RCA x 3, RCA x 6, TOSLINK, banana x 2, one-touch x 2, phone stereo 6.3 mm, F connector, RCA, RCA x 2
Connector Location front, rear
