ZKTeco F22, Finger and Access Control Device

Quick Details
ID No: HM21718-1004
Price: Call for Price
Brand: ZKTeco
Model: F-22
Product Title: ZKTeco F22, Ultra thin fingerprint time attendance and access control terminal, etc.

Display 2.4-inch TFT LCD Color Screen
Fingerprint Capacity 3000
Card Capacity 5000(Optional) ID or mifare card
Transaction Capacity 30,000
Sensor BioID Sensor/ SilkID Sensor (optional)
Algorithm Version ZKFinger VX10.0
Communication RS232/485, TCP/IP, USB-host,Wi-Fi

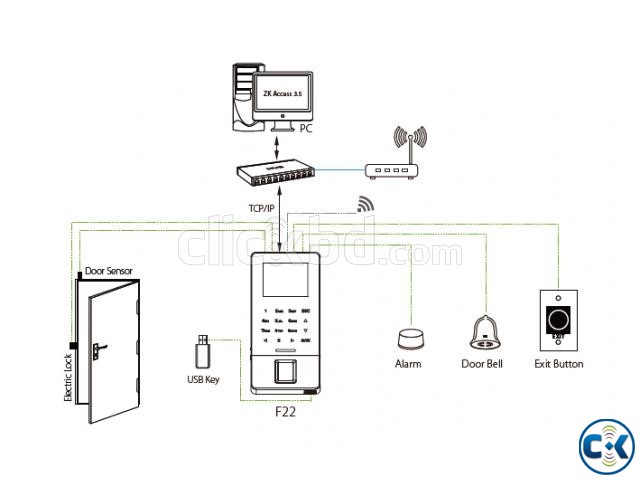

Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal Input, Output
Aux. Input 1ea for linkage function
Functions DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID,
Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional)
Power Supply 12V DC,3A
Operating Temperature 0 °C- 45 °C
Operating Humidity 20%-80%
Dimension(LxWxH) 158.5x78.0x19.4mm
SDK and software Standalone SDK,ZKAccess3.5 software

Overview
F22 is an ultra-thin fingerprint time attendance and access control terminal with BioID sensor and Wi-Fi, which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.

Function
• 2.4-inch TFT color screen and Touch keys
• Ultra thin and elegant design
• Full Access Control Features: Anti-passback, access control interface for 3rd party electric lock, door
sensor, exit button, alarm
• Standard Wi-Fi
• Network interface by TCP/IP or RS485
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• Multiple Verification Modes: Multi-verification methods (card is optional) providing user various choices
