Hydraulic gsm cutter and Balance

Product Description

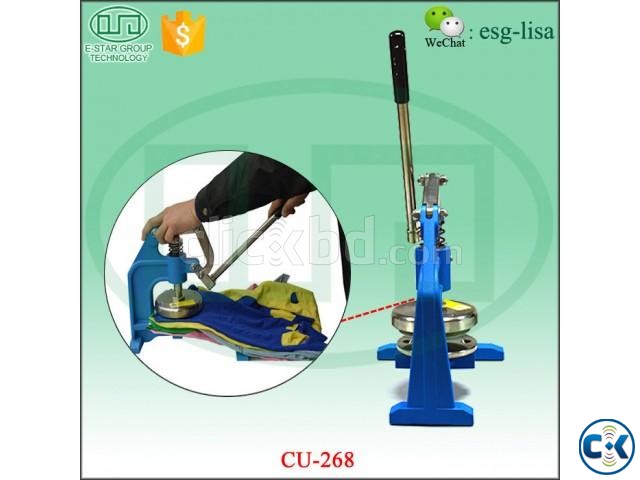

 This hand press sample cutter cutting die was made of Japan stainless steel. Cutting material are including: Textile, Leather, AL film, Carpet, Plastic, Polyfoam board, Paper, Carbon composite material and so on. Fashionable appearance & Simple operation. Can cut several layers at one time. We offered different cutting die for one sample machine use, such as 100 sq.cm, 50sq.cm, 38sq.cm,  25sq.cm, 20sq.cm, 10sq.cm, (other size and shapes can be customized).

Detailed Images

Advantages

 I. Using Japan imported fine knife, sharp and durable, cutting the materials can include textiles, carpets, leather, aluminum foil, plastic, styrofosm, paper, advanced carbon fiber composite materials.

II. High-grade aluminum fuselage, simple and convenient, fast, multilayer cutting fabric, improve work efficiency

III. Multi-usage, can choose cutting die 100/50/38/25/20/10 sq.cm (Other specifications ans shapes can be customized)

IV. Structure application of hand pressure type cutting principle, don't go, don't cut, cutting accuracy is 100%, ans the complete, high efficiency, save energy, reduce material waste, reduce workload, reduce production costs.

Technical Parameter

Industrial Aluminium Hand Round Corner Cutter Fabric GSM Cutter

Material	aluminum
Cutting Area	100 sq.cm
Cutting Thickness	0.1mm-10mm
Machine Size	34cm*34cm*24cm(1-2cm) tolerance
Blade Diameter	112.84mm

 All shapes can be customized according to drawing or sample.



Fabric weight balance schroder -GSM200

Detailed Product Description

Specifications:

Built-in four display units g, g/m2, oz, oz/yd2
Max. Capacity 200g x 0.01g, 20,000g/m2 x 1g/m2, 7 oz x 0.0005


Schröder Fabric Weight Balance

Specifications:

Built-in four display units	g, g/m2, oz, oz/yd2
Max. Capacity	200g x 0.01g, 20,000g/m2 x 1g/m2, 7 oz x 0.0005oz, 590 oz/yd2 x 0.05oz/yd2
Platform Size	Diameter 100mm (Round)
Completed With	Plastic Wind Shield
Power Supply	12 VAC ~150mA Adapter or 6 x AA Batteries
