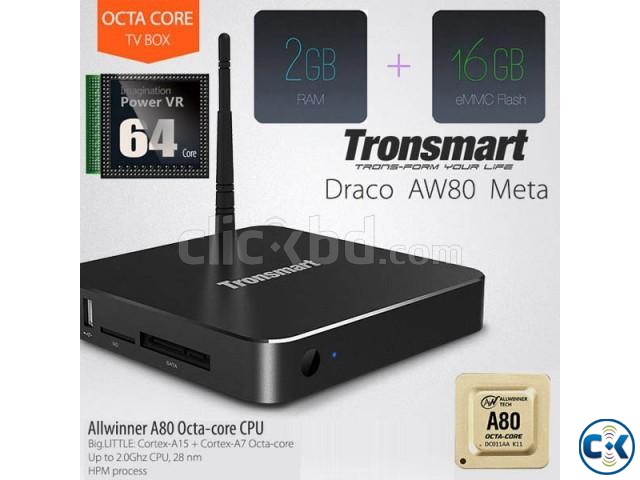

Tronsmart AW80 Meta Allwinner A80 Octa Core Tv Box

Multifunctional Android box will turn your monitor or TV set into entertainment system or mini PC. It allows you to connect to the Internet, watch video online or from the memory and also use various applications from Google Play. Also this TV box supports Miracast, DLNA, Airplay functions, which allow to connect the Android and iOS devices, watch content on the connected monitor, and also mirror the screen of the smartphone/tablet (Miracast).



Highlights

•CPU: Allwinner A80 Octa-Core ARM Cortex A15/A7

•GPU: imagination 64-Core PowerVR G6230

•Android 4.4 OS, support OTA update

•DRR3 2GB RAM + EMMC 16GB ROM

•Dual-band Wi-Fi, Support 802.11 a/b/g/n/ac

•Bluetooth 4.0/USB 3.0/ SATA/ Gigabit Ethernet

•Support 4k2k H.265 decoding

•Many useful apps pre-install

•Support DLNA / Airplay / Miracast / SMB

•Support controlled by smartphone / tablet, just search Google TV Remote from play store. and download to your smartphone;

•Come with rooted;

•Built in google play store, XBMC, Netflix, Plex, Hulu PLUS+, skype, youtube etc.



Specification



Brand : Tronsmart

Model : Draco AW80 Meta

Color : Black

Material : Aluminium alloy



System

Operating System : Android 4.4, support OTA

CPU : Allwinner Octa Core A80 ARM Cortex A15/A7

GPU : 64-Core PowerVR G6230

RAM : DDR3 2GB

ROM : EMMC 16GB

Extended Storage : SD Card, up to 64GB



Communication

Wifi Connectivity : 2.4G/5.8G, IEEE 802.11 a/b/g/n/ac, Wifi AP6335 module

Ethernet : 10M/100M/1000M

Bluetooth : Bluetooth 4.0



Media

Video Supported

Video Decoder : Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

Video Encoder : H.265 HEVC [email protected] up to 4Kx2K@30fps



Audio Supported

Audio Container : Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 5.1 down-mixing

Audio Out : HDMI Data Output



Resolution Maximum resolution is 4Kx2K



Interfaces

HDMI Port Standard HDMI female, 1.4b

Other Interfaces : 2 x USB HOST; 1 x USB3.0 Host; 1 x RJ45 10M/100M/1000M;1 x SD card slot;1 x SPDIF;1 x AV Port; 1 x SATAPort



Other Features



3G : N/A

Other Function Support : Google Play & APK install

Support : DLNA,Miracast Protocol

Support : Skype/QQ/MSN/GTALK (Depends on APK )

WORD/EXCEL/PDF(Depends on APK install)

Power DC12V/2A  5.5mm DC-in

Certification CCC, CE, FCC, Wi-Fi



Dimension & Weight (Main Product)



Dimension 164 x 164 x 27.5mm

Weight 440g



Package Contents

1 x TV box

1 x IR remote control

1 x HDMI cable

1 x SATA cable

1 x Male to male USB cable

1 x Power adapter (A right AC Adapter will be sent as your shipping country)

1 x User manual
