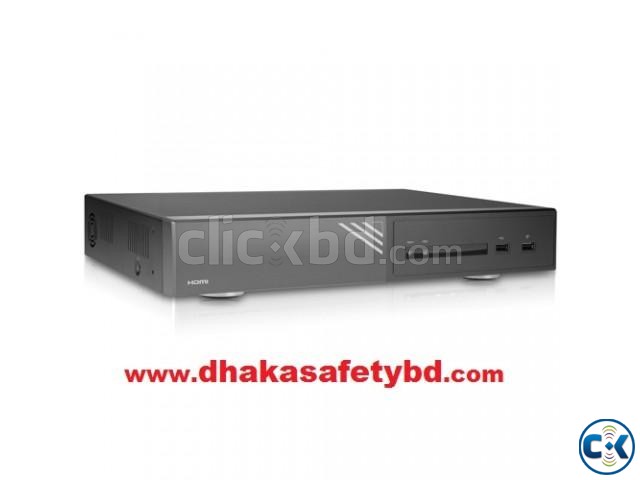

AVTECH DG1007 Full HD 8 Channel DVR- Taiwan

Product Description
Video
Video system NTSC / PAL (auto detection)
Video compression Format H.264
Video Input 8 channels ( Composite video signal 1 Vp-p 75Ω BNC)
Video Output BNC Yes
VGA Yes
HDMI Yes
Record & Backup
Maximum Recording Rate 1080P 1920 x 1080 pixels with 120 IPS
720P 1080 x 720 pixels with 240 IPS
QHD 960 x 540 pixels with 240 IPS
Frame 704×480 pixels with 240 IPS / 704 x576 pixels with 200 IPS
Field 704×240 pixels với 240 IPS /704×288 pixels with 200 IPS
CIF 352×240 pixels với 240 IPS /352×288 pixels with 200 IPS
Recording Mode Manual/ Timer/ Motion/ Alarm/ Remote
Pre-alarm recording Yes
Playback Channel 8CH
Quick search Time/ Motion/ Alarm search mode
Backup Device USB 2.0 Flash drive / Network
Audio
Audio input 1 Audio inputs
Audio Output 1 audio Outputs (Mono)
General
Hard Disk Storage Up to 2 SATA HDDs (1 HDD up to 4TB)
SATA Interface Yes
Image Quality Setting SUPPER BEST/ BEST/ HIGH/ NORMAL
USB Mouse control Yes
Motion Detection Area 16×12 grids per channel
Motion Detection Sensitivity 3 adjustable parameters for accurate detection
Event Notification Push status / FTP/ E-Mail
Picture Zoom 2X digital Zoom
PTZ Control Yes
Alarm I/O 1 inputs, 1 output
IR Remote Control Yes ( IR receiver buit-in)
Key lock (Password Protection) Yes
User level 4 user levels for different access privilege
Video Loss Detection Yes
Camera title Supports up to 12 letters
Video Adjustable Hue/ Saturation/ contrast/ brightness
Date Display Format YY/MM/DD, DD/MM/YY & MM/DD/YY
Daylight Saving Yes
Power source (±10%) DC12V / 3A
Operating temperature 10℃~ 40℃(50℉~104℉)
Dimensions (mm)* 375 (W) x 77 (H) x 273.8 (D)
Weight 1.9 Kg
Network
Ethernet 10/100 Base-T. Support remote control and live view via Ethernet
Network Protocol TCP/IP, PPPOE, DHCP và DDNS
Remote Surveillance from PC
Compatiable Operating System Windows & MAC
Compatiable Program Web Browser: Internet Explorer, Mozilla Fireforx, Google Chrome, Safari
Video Viewer: 16CH central management software for Windows and Mac operating systems.
Quick Time: For both Windows và MAC operating systems
Max. online users 10
Web transmiting Compression Format H.264
Network Live Audio Yes
Remote Independent Operation Yes
Remote Event Download & Playbak Yes
Mobile Surveillance
App EagleEyes
Compatible Devices iOS & Android Devices
Push Status Yes ( EagleEyes cho iPhone, iPad, Android)
Others
Eazy Networking Yes
DCCS Support Yes
AVTECH free DDNS Service Yes
Multiplex Operation Live display/ record/ Playback/ backup/ Network operations
System Recovery System auto recovery after power failure
Optional Peripherals HDMI Matrix (HDM02)
===========================
