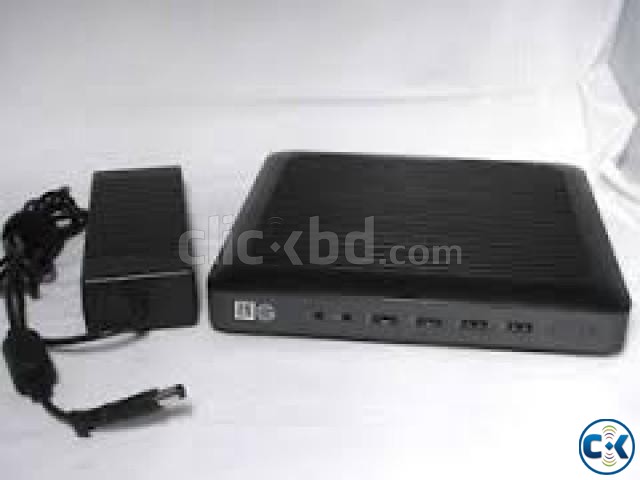

HP t620 Flexible Thin Clients

Hardware specification
Operating Systems Available with preinstalled HP ThinPro, HP Smart Zero Technology, Microsoft Windows Embedded Standard 7E
Processor1 AMD GX-217GA Dual-Core APU with AMD Radeon HD 8280E graphics (1.65 GHz); AMD GX-415GA Quad-Core APU with AMD
Radeon HD 8330E (1.5 GHz)
PLUS: AMD GX-420CA Quad- Core APU with AMD Radeon HD 8400E graphics (2 GHz)
System memory3,7 4 GB DDR3L 1600 MHz standard, up to 16 GB
Storage 16-64GB MLC mSATA SSD
Flash memory 16 GB for configurations using HP ThinPro, HP Smart Zero Technology, and Microsoft Windows Embedded Standard 7E
Graphics8 Integrated AMD GX-217GA Dual-Core APU with AMD Radeon HD 8280E graphics (1.65 GHz); AMD GX-415GA Quad-Core APU
with AMD Radeon HD 8330E (1.5 GHz)
PLUS: Integrated AMD GX-420CA Quad- Core APU with AMD Radeon HD 8400E graphics (2 GHz); AMD FirePro 2270 (optional)
Notes:AMD Radeon HD 8280E graphics available on dual-core 1.65 GHz processor only. AMD Radeon HD 8330E graphics available on quad-core 1.5 GHz processor only.
Either 2 x DisplayPort 1.2 from factory, or 1 x DisplayPort 1.2 (active) and 1 x VGA (in option port)
AMD FirePro 2270 option includes 2 x DVI-I adapter. 2 x DisplayPort 1.2 adapter available as after-market option.
AMD Radeon HD 8400E graphics available on quad-core 2.0 GHz processor only.
Monitor support 2 x DisplayPort 1.2, or 1 x DisplayPort 1.2 and 1 x VGA (some models)
(see other monitor support options, above)
Audio Internal amplified speaker, 1/8-inch mini jack out, full 24-bit stereo, up to 192kHz sample rate, 1/8-inch mini jack
microphone in; 24-bit stereo; up to 192 kHz sample rate input, audio line in and out connectors on rear panel.
Communications2,3,4,9 10/100/1000 Gigabit Ethernet (RJ-45) (actual speeds may vary)
Broadcom 802.11 a/b/g/n Wi-Fi with dual internal antennas (optional)
Broadcom 802.11ac with dual internal antennas (optional)
HP 100 Mbps Mini PCIe SC Fiber NIC (factory-installed option)
Ports and connectors10 Standard models: Front: 2 USB 2.0, 2 USB 3.0, 1 Headphone, 1 Microphone; Rear: 2 USB 2.0, 2 DisplayPort 1.2, 1 RJ45, 1
Audio Line-in, 1 Audio Line-Out, 1PS/2 KB, 1 PS/2 Mouse, 1 Configurable Port= 1 Serial (Default) or Fiber NIC or VGA; Hidden:
2 USB 2.0
PLUS models: Front: 2 USB 2.0, 2 USB 3.0, 1 Headphone, 1 Microphone; Rear: 2 USB 2.0, 2 DisplayPort 1.2, 1 RJ45, 1 Audio
Line-in, 1 Audio Line-Out, 1PS/2 KB, 1 PS/2 Mouse, 1 Configurable Port= 1 Serial (Default) or Fiber NIC or VGA; 1 Riser Card/
Expansion Slot (PCIe 2nd Gen, x16 slot with x4 channels), 1 additional serial, 1 additional Parallel; Hidden: 2 USB 2.0
Quad-head video models: 4 USB 2.0 (2 front/2 rear), 2 USB 3.0 (rear), 2 DVI-I, 2 DisplayPort, 2 PS/2, 2 serial,
1 parallel, 1 RJ-45 (PCIe slot is occupied by AMD FirePro 2270 card).
Input devices Standard keyboard and optical mouse included (USB or PS/2)
Expansion PLUS only: 1 half-height PCIe x16 (x4 channels)
Power Standard chassis: 65W worldwide auto-sensing 100-240 VAC 50-60Hz surge-tolerant power supply
PLUS chassis: 85W worldwide auto-sensing 100-240 VAC 50-60Hz surge-tolerant power supply
Environmental6 ENERGY STAR qualified; EPEAT registered rated; Low halogen11
Dimensions (WxDxH) Standard chassis (vertical orientation)
With stand: 8.7 x 1.6 x 9.5 in (22x4x24 cm)
PLUS chassis (vertical orientation)
With stand: 8.7 x 2.6 x 9.5 in (22 x 6.5 x 24 cm)
