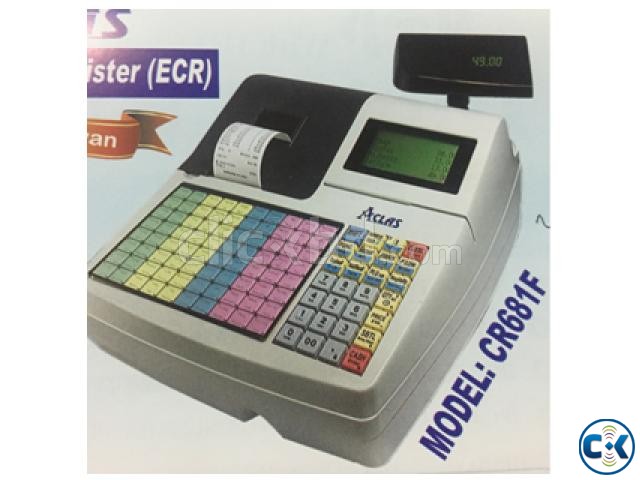

ACLAS Electronic Fiscal Cash Register (ECR) Model: CR681F NB

ACLAS Electronic Fiscal Cash Register (ECR) Model: CR681F NBR approved

Description
Brand name ACLAS
Model name CR681F
Printer / 2*57MM thermal printer,
Size of paper roll 2*57mm paper roll
Number of printers /speed 2 printers / max. 50mm/s
Power supply switching mode power supply, Rating voltage is 100V - 240V, 7V 2.0A
Rechargeable battery 6V4.5AH, last for 8 hours for one receipt every minute. ((15ling, 16charactor/per line)
Type of the keyboard Membrane keyboard +Computer keyboard
Operator-Display 14 digits Alphanumeric LCD display (6 digits + 8 characters)
Customer –Disaply 9 Digit 7Segment VFD
Department on keyboard 16
Cashiers number 4 clerk
PLU number 25000
Ports 1RS232 port, 1 PS/2 port,1 drawer port
Fiscal memory capacity 1M bits (according to the recorded data length, it will decide how long such FM could be used. IE for TR market, such 256k bit memory can be used for 7 years, but for PL market 1M bit memory only could be used for 5 years)
Accessory 1 D9P4 PC cable; 1 CD for PC s/w; 1 SMPS, User Manual
Dimensions 392.84 X 322 X 162.9 (mm)
