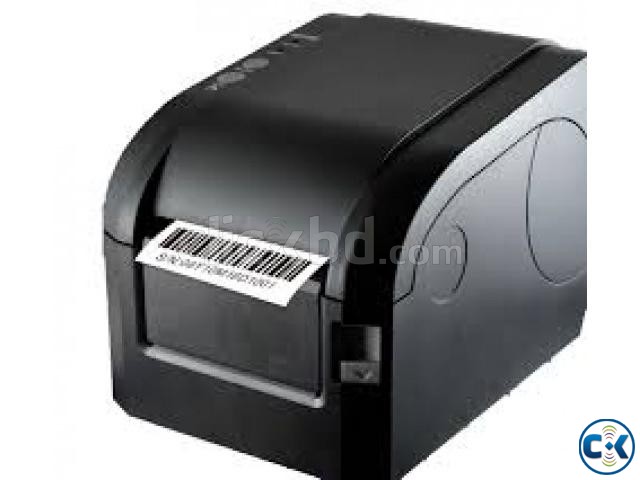

Barcode printer

# Main features
* Support thermal roll paper and self-adhensive paper
* Meet with various medium between 16mm & 82mm
* Adjust the printer head pressure
* Auto self-test paper function
* Keep the temperature control
* Model design and meet with various apply

# Application fields

* Supermarkei, glossary, franchise house, restaurant
*Drug store, clothing store, multiple shop, arbershop
*Convience store, bontique, shoe store, coffee shop Thermal Printer Line Printing Foreansportatio

# Specifications

Printing Method- Direct Thermal
Resolution- 203 DPI (8dos/mm)
Max Paper Width- 16-82mm
Printing Speed- Max 127mm/s
Reservoir- DRAM :2M FLASH: 2M
Test printer head temperature- Touch the swith slightly
Explore paper- photo sensor
Interface- Serial+Ethernet+USB
Barcode - CODE128,EAN128,ITF,CODE39,CODE93,EAN13,EAN13+2,
EAN13+5,EAN8,EAN8+2,EAN8+5,CODABAR,POSTNET,
UPC-A,UPCA+2,UPCA+5,UPC-E,UPCE+2,UPC-E+5,CPOST,MSI,MSIC
PLESSEY,ITF14,EAN14
Barcode setting- Single character FONT 0 to FONT 8
Extension and rotation character- the character can be extened 1-10 double in crossing and
portrait, printing rotation (0°,90°,180°,270°)
Graph- Image file as PCX and BMP can be downloaded to FLASH and DRAM
Paper type- Thermal paper and self defensive paper
Roll external diameter- Max 100mm
Roll Inner diameter- Min 25mm
Paper delivery- Tear and Peel
Power supply input- 24DC 2.5A
Weight- 1.44KG
Dimension- 220L*148W*150H (mm)
Working environment- 5~45℃, 20-80%RH
Storage environment- 40 ~55℃, ≤93%RH (40℃)
