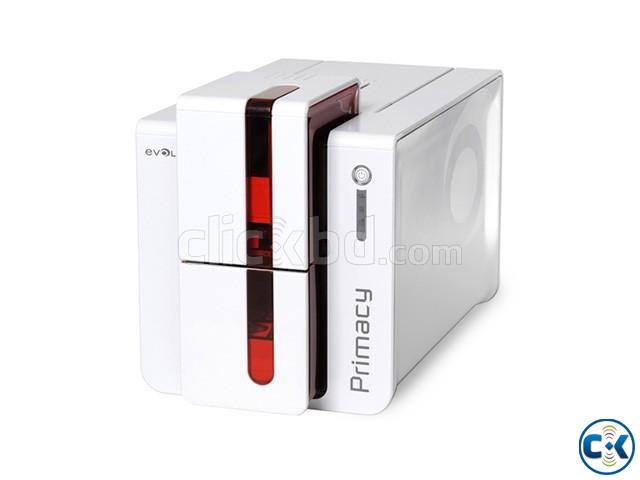

Primacy card printer

General features
Direct-to-card Dye-sublimation/Resin Thermal Transfer
Single or dual-sided printing, edge-to-edge
Standard 300 x 300 dpi resolution
Customizable 300 x 600 dpi resolution or 300 x 1200 dpi resolution (monochrome printing only)
32 MB memory (RAM) standard – optional 64 MB


Printing performances
Single side:
Color (YMCKO): 190 - 225 cards/hour1
Monochrome: 600 - 850 cards/hour
Dual side:
Color (YMCKO-K): 140 cards/hour


Optional features
Colors available: fire red & brilliant blue
Upgrade kit for dual-sided printing
USB encoding over IP through additional USB Net Server module, upon request
Locking system
Wireless range: wireless connection 802.11b/g


Additional encoding modules
Available modules:
Magnetic stripe encoder ISO 7811 / HiCo/LoCo, JIS2
Smart contact station ISO 7816-2
Contact smart card encoder - PC/SC, EMV 2000-1
Contactless smart card encoder - ISO 14443A, B, ISO15693, Mifare, DesFire, HID iCLASS, UHF encoder: ETSI (EN 302 208) or FCC (part 15.247) standard compliance: EPC C1 Gen2 / ISO18000-6C
Other specific encoders upon request
Internal USB or IP ports
Options can be combined
Factory installed or installed on-site


Interfaces
USB (1.0, 1.1, 2.0, 3.0)
Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
802.11b/g wireless connection on the Wireless range

Safety
Support for Kensington® security lock
Data encryption for magnetic encoding

Display
Printer LEDs
Graphical notifications from the printer2: cleaning alerts, Empty/low level ribbon and card alerts, etc.


Card management and specifications
Feeder capacity: 100 cards (0.76 mm - 30 mil)
Output hopper capacity: 100 cards (0.76 mm - 30 mil)
Reject tray capacity: 30 cards (0.76 mm - 30 mil)
Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment (0.25mm / 10 mil only for monochrome printing)
Card types:
PVC cards
Composite PVC cards
PET cards
ABS cards1
Special varnished cards1
Card format: ISO CR80 - ISO 7810 (53.98 mm x 85.60 mm)
