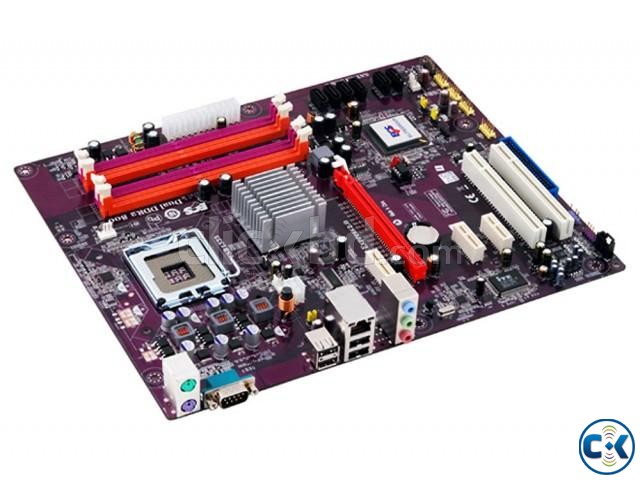

ECS Gaming Motherboard P43T-A2

CPU º LGA775 socket for latest Intel Yorkfield/ Wolfdale/ Core 2 Quad/ Core 2 Duo/ Pentium Dual Core/ Celeron Dual Core/ Celeron 4xx processor
º FSB 1333/1066/800 MHz
CHIPSET º Intel® Eaglelake P43 & ICH10
º North Bridge: Intel® Eaglelake P43
º South Bridge: Intel® ICH10
MEMORY º Dual-channel DDR2 memory architecture
º 4 x 240-pin DDR2 DIMM socket support up to 16GB
º Support DDR2 800/667 DDR2 SDRAM
Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation
EXPANSION SLOT º 1 x PCI Express x16 slot
º 3 x PCI Express x1 slots
º 2 x PCI slots
STORAGE º Support by Intel® ICH10
• 6 x Serial ATA 3.0Gb/s devices
º Support by JMB368
• 1 x IDE channel support 2 Ultra DMA133/100/66 devices
AUDIO º Realtek ALC662 6-channel HD audio CODEC
LAN º Gigabit LAN, Atheros L1 PCIe GigaLAN controller
REAR PANEL I/O º 1 x PS/2 keyboard & PS/2 mouse connectors
º 4 x USB ports
º 1 x RJ45 LAN connector
º 1 x Audio port
º 1 x Serial port (COM1)
INTERNAL I/O CONNECTORS & HEADERS º 1 x 24-pin ATX Power Supply connector
º CPU_FAN/SYS_FAN/PWR_FAN connectors
º 1 x IDE connector
º 1 x Speaker header
º 1 x SPDIF out header
º 6 x Serial ATA 3Gb/s connectors
º 1 x Front panel switch/LED header
º 1 x Front panel audio header
º 1 x CD in header
º 4 x USB 2.0 headers support additional 8 USB ports
SYSTEM BIOS º AMI BIOS with 8Mb SPI Flash ROM
º Supports Plug and Play, STR/STD, Hardware monitor, PCI interrupt selection, ACPI & DMI, CPU FSB adjustment (increase of 1MHz)
º Audio, LAN, can be disabled in BIOS
º F11 hot key for boot up devices option
• CPU voltage adjustable
º Memory voltage adjustable for DDR2 800
º PECI Supports
FORM FACTOR º ATX Size, 305mm*244mm
