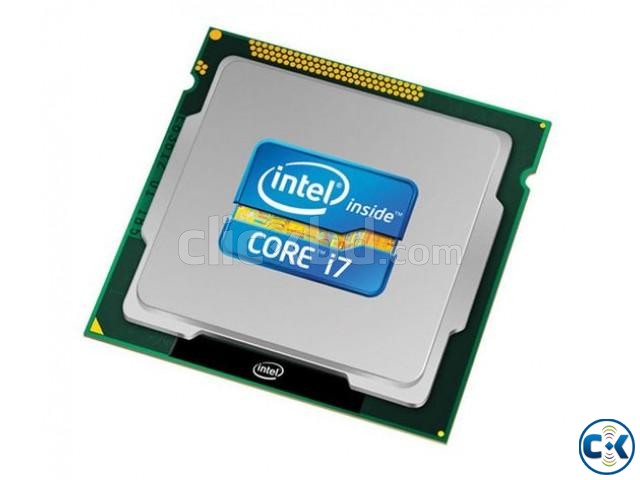

Intel® Core™ i7-2600S Processor 8M Cache up to 3.80 GHz

Status End of Life
Launch Date Q1'11
Expected Discontinuance Q1'2013
Processor Number i7-2600S
Intel® Smart Cache 8 MB
DMI 5 GT/s
Instruction Set 64-bit
Instruction Set Extensions SSE4.1/4.2, AVX
Embedded Options Available
No
Lithography 32 nm
Recommended Customer Price BOX : $305.00
Datasheet Link
-
Performance
# of Cores 4
# of Threads 8
Processor Base Frequency 2.8 GHz
Max Turbo Frequency 3.8 GHz
TDP 65 W
-
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3 1066/1333
Max # of Memory Channels 2
Max Memory Bandwidth 21 GB/s
ECC Memory Supported ‡
No
-
Graphics Specifications
Processor Graphics ‡ Intel® HD Graphics 2000
Graphics Base Frequency 850 MHz
Graphics Max Dynamic Frequency 1.35 GHz
Intel® Quick Sync Video
Yes
Intel® InTru™ 3D Technology Yes
Intel® Insider™ Yes
Intel® Wireless Display
No
Intel® Flexible Display Interface (Intel® FDI) Yes
Intel® Clear Video HD Technology Yes
# of Displays Supported ‡ 2
-
Expansion Options
PCI Express Revision 2.0
Max # of PCI Express Lanes 16
-
Package Specifications
Max CPU Configuration 1
TCASE 69.1°C
Package Size 37.5mm x 37.5mm
Sockets Supported LGA1155
Low Halogen Options Available See MDDS
-
Advanced Technologies
Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro Technology ‡
Yes
Intel® Hyper-Threading Technology ‡
Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® VT-x with Extended Page Tables (EPT) ‡
Yes
Intel® 64 ‡
Yes
Idle States Yes
Enhanced Intel SpeedStep® Technology
Yes
Thermal Monitoring Technologies Yes
Intel® Fast Memory Access Yes
Intel® Flex Memory Access Yes
Intel® Identity Protection Technology ‡ Yes
-
Intel® Data Protection Technology
AES New Instructions
Yes
-
Intel® Platform Protection Technology
Trusted Execution Technology ‡
Yes
Execute Disable Bit ‡ Yes
