Fire Alarm Control Panel (04 zone)

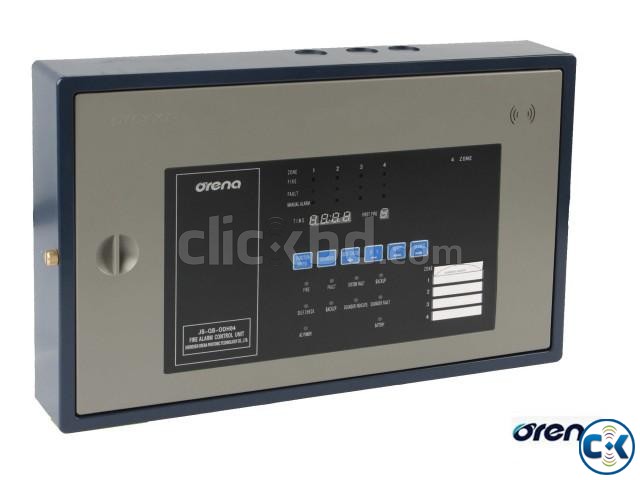

The ODH04E Conventional Fire Alarm Control Panel is a 24volt, 4 zone, Class B, Conventional Fire Alarm Control Panel.

It is designed exclusively to meet the latest market requirements and microprocessor technology, with stand-by batteries (two sealed acid storage batteries) and reserved space for installation.
It has functions of operation indication, fault indication, alarm indication and cable checking for short circuit or broken circuit.
The highly cost-effective ODH16E can be used in low-sized applications.
-------------------------------------
• Place of Origin: Guangdong, China (Mainland)
• Brand Name: ORENA
• Model Number: ODH04E
-------------------------------------

Characteristics

Style B (Class B) Initiating Device Circuits (IDCs) accept two-wire smoke detectors and any normally-open contact devices
One set of volt free changeover contacts operable on fire
One set of volt free changeover contacts operable on fault
Non-latching zones facility
Class change input for remote control
Zone and alarm disablement
28V 125mA fused supply permanently available
28V 300mA fused supply available for fire alarm bells or sounders
Passive repeater available

Specifications

AC Power : AC220V±10% 50Hz, 2.0 amps, minimum 14 AWG wire (2.0 mm²) with 600-volt insulation.

Battery : Sealed lead-acid batteries, Maximum battery charger capacity: 4AH

battery
Total 24 V system power : 3.0 amps
Zone Capacity : can be connected with 20 fire detectors and infinite manual

call points

Fire & Fault Contact Outputs : 1.0 amps DC24V or AC125V
Using environment : Temperature: 0°C~50°C Related Humidity: ≤95% (40±2°C)
Dimensions : 370mmx240mmx60mm
---------------------------------
