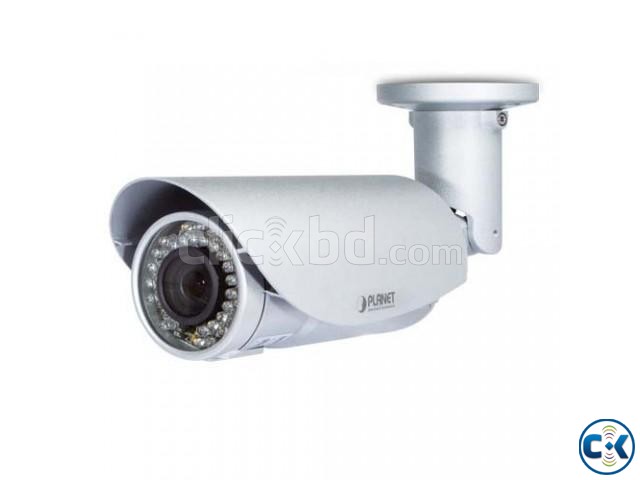

Planet ICA-3250V Full HD Outdoor IR

Specification:
Camera
Image Device 1/2.7″ 2 mega-pixel progressive scan CMOS sensor
Lens Vari-focal 3.6~10.5 mm, DC auto-iris
Mechanical IR-cut filter
Angle of view : horizontal: 23.6 ~ 97.9 degrees / vertical: 14.2 ~ 51.6 degrees
Min Illuminator 0 lux @ F1.2
IR Illumination LED IR LED*35, 850nm
Built-in IR illuminators, effective up to 25 meters
Effective Pixels 1920 x 1080 pixels
Video Encoder H.264 / MPEG-4 / M-JPEG
Video Profile H.264: 1080P / 720P / VGA / QVGA / QCIF
M-JPEG: 1080P / 720P / VGA / QVGA / QCIF
MPEG-4: VGA / QVGA / QCIF (Only for 3GPP)
Frame Rate Up to 30fps for all resolutions
Image Setting Brightness, sharpness, contrast, AGC, Night Mode
Text, time and date overlay
Streaming Simultaneous multi-profile streaming
M-JPEG streaming over HTTP
Supports 3GPP mobile surveillance
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG-4 / H.264)
Audio
Audio Streaming Two-way audio
Audio Encoder RTSP: G.711 / G.726
3GPP: AMR
Microphone External microphone input
Audio Output Phone Jack
Network and Configuration
Network Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
Supported Protocols IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE 802.1X, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour
Security Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X Port-Based
authentication for network protection, QoS/DSCP
Users 10 simultaneous unicast users
System Integration
Application Programming Interface Open API for software integration
SDK
Alarm Triggers Intelligent video motion detection and external input
3-zone video motion detection
Alarm Events File upload via FTP, email and SAMBA.
External output activation
Configurable Pre/Post alarm buffering
General
Power Supply 12V DC, 1A
IEEE 802.3af Class 0
Power Consumption DC 12V Max: 5.76W(IR On); 3.84W(IR Off)
PoE Max: 7.68W (IR on); 4.8W(IR Off)
Housing Weather-proof IP66-rated housing
Operating Temperature -20 ~ 50 degrees C
Operating Humidity 20 ~ 80% (non-condensing)
Weight 1590g
Dimension (Φ x L) 83mm x 180 mm
Emission CE, FCC
