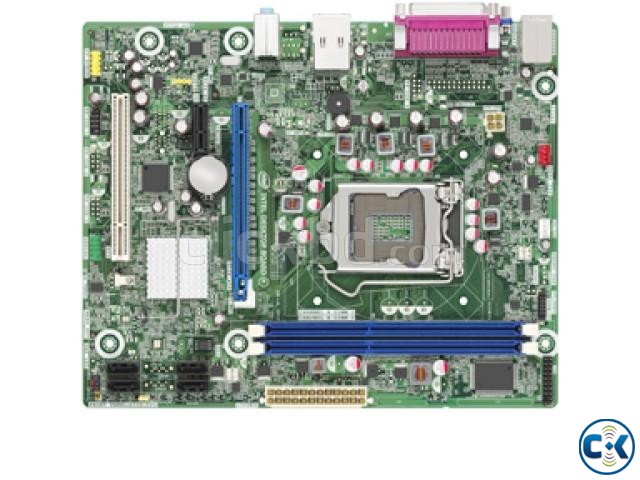

Intel DH61WW motherboard

Features and Configurations
Form factor Micro-ATX
AA number (Altered Assembly) G23116-xxx
BIOS ID string BEH6110H.86A with Intel Fast Boot Technology
Processor

At product launch, this desktop board supports:

Intel® Core™ i7 processor series in an LGA1155 socket
Intel® Core™ i5 processor series in an LGA1155 socket
Intel® Core™ i3 processor series in an LGA1155 socket

View all compatible Intel® processor numbers
Memory

Two 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for DDR3 1333 / 1066 MHz DIMMs
Support for up to 16 GB of system memory
Tested system memory

Graphics VGA connector for processors with Intel® HD Graphics
Chipset

Intel® H61 Express Chipset

Audio Intel® High Definition Audio (Intel® HD Audio) subsystem in the following configuration:

6-channel audio subsystem with three analog audio outputs using the Realtek ALC892* audio codec

LAN support Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel® 82579V Gigabit Ethernet Controller
Peripheral interfaces

Up to six USB 2.0 ports
Four Serial ATA 3.0 Gb/s ports
One parallel port
One serial header

Expansion capabilities

One PCI Express* 2.0 x 16 bus add-in card connector
One PCI Express 2.0 x 1 connectors
One PCI Conventional bus connector
