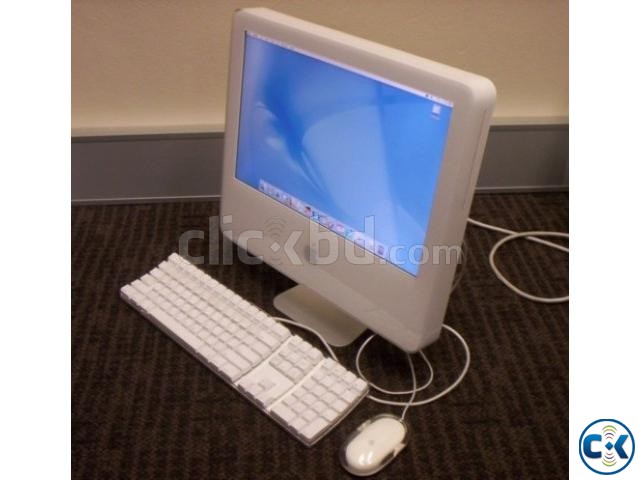

imac g5

call : 01677719219

Configurations 1.6GHz 17-inch iMac 1.8GHz 17-inch iMac 1.8GHz 20-inch iMac
Model M9248LL/A M9249LL/A M9250LL/A
Processor 1.6GHz PowerPC G5 1.8GHz PowerPC G5 1.8GHz PowerPC G5
Frontside bus 533MHz 600MHz
Memory 256MB PC3200 (400MHz) DDR SDRAM, supports up to 2GB
Graphics NVIDIA GeForce FX 5200 Ultra with 64MB DDR SDRAM with AGP 8X support
Hard drive1 80GB Serial ATA; 7200 rpm1 160GB Serial ATA; 7200 rpm1
Optical drive Slot-loading Combo Drive (DVD-ROM/CD-RW) Slot-loading SuperDrive (DVD-R/CD-RW)
Display 17-inch (viewable) widescreen TFT active-matrix LCD, 1440 x 900 pixels, millions of colors 20-inch (viewable) widescreen TFT active-matrix LCD, 1680 x 1050 pixels, millions of colors
Ports Two FireWire 400 ports; three USB 2.0 ports, two USB 1.1 ports (on keyboard); VGA output2; S-video and composite video output2
Networking Built-in 10/100BASE-T Ethernet and 56K V.92 modem3
Wireless AirPort Extreme ready (based on 802.11g specification; IEEE 802.11b Wi-Fi certified)4; internal Bluetooth module available as build-to-order option
Audio Headphone/optical digital audio output; audio line in
System software Mac OS X version 10.3 “Panther,” includes Classic environment, Mail, iChat AV, Safari, Sherlock, Address Book, QuickTime, iSync, iCal
Software iLife ’05 (includes iTunes, iPhoto, iMovie HD, iDVD and GarageBand), AppleWorks, Quicken 2004 for Mac, World Book 2004 Edition, Nanosaur 2, Marble Blast Gold, Microsoft Office 2004 for Mac Test Drive and Apple Hardware Test
Hardware accessories Built-in stereo speakers, Apple Keyboard, Apple Mouse, modem cable
Limited warranty and service Your iMac G5 comes with 90 days of free telephone support and a one-year limited warranty. Purchase the AppleCare Protection Plan to extend your service and support to three full years. Only the AppleCare Protection Plan provides you with direct telephone support from Apple technical experts and the assurance that repairs will be handled by Apple-certified technicians using genuine Apple parts. For more information, visit Apple support or call 800-823-2775.
Internet access All models include 30 days of free dial-up Internet service with EarthLink (North America only) activation. Internet access requires a compatible Internet service provider; fees may apply.
Build-to-Order Options Order a custom-configured computer from the online Apple Store or an authorized Apple reseller.
Cables and adapters

Apple VGA Display Adapter M8639G/A
Apple Video Adapter M9109G/A
Apple FireWire Cable (4-pin to 6-pin) M8706G/A
iMac G5 VESA Mount Adapter Kit M9755G/A

DVD

Apple DVD-R Media Kit M9472G/A

Audio

Apple iPod

Wireless

AirPort Extreme Card M8881LL/A
AirPort Express Featuring AirTunes M9470LL/A
AirPort Extreme Base Station (with modem and antenna port) M8799LL/A
Internal Bluetooth module with antenna
D-Link USB Bluetooth Adapter T6295ZM/A

Services

AppleCare Protection Plan M8851LL/A
.Mac Subscription:
Retail Box MA175Z/A
Family Pack MA176Z/A

Technical Specifications
Processor and memory

1.6GHz or 1.8GHz PowerPC G5 processor with Velocity Engine
512K on-chip level 2 cache at full processor speed
533MHz or 600MHz frontside bus
256MB of PC3200 (400MHz) DDR SDRAM expandable to 2GB; two memory slots

Storage

80 or 160GB 7200-rpm Serial ATA hard disk drive
One of the following optical drives:
Combo drive (DVD-ROM/CD-RW): reads DVDs at up to 8x speed, writes CD-R discs at up to 24x speed, writes CD-RW discs at up to 16x speed, reads CDs at up to 24x speed
SuperDrive (DVD-R/CD-RW): writes DVD-R discs at up to 4x speed, reads DVDs at up to 8x speed, writes CD-R discs at up to 16x speed, writes CD-RW discs at up to 8x speed, reads CDs at up to 24x speed

Communications

Built-in 56K V.92 modem (RJ-11 connector)3
Built-in 10/100BASE-T Ethernet (RJ-45 connector)
Built-in antennas and expansion slot for optional 54-Mbps AirPort Extreme Card (based on IEEE 802.11g standard; Wi-Fi Certified for 802.11g and 802.11b interoperability)3
Optional internal Bluetooth module

Peripheral connections

Two FireWire 400 ports; 8 watts shared
Total of five USB ports: three USB 2.0 ports (up to 480 Mbps) on computer, two USB 1.1 ports on keyboard

Display

Built-in 17-inch (viewable) widescreen or 20-inch (viewable) widescreen TFT active-matrix liquid crystal display
Millions of colors at all resolutions
Typical viewing angle:
17-inch models
120° horizontal
90° vertical
20-inch model
170° horizontal
170° vertical
Typical brightness: 200 cd/m (17-inch models); 230 cd/m (20-inch model)
Typical contrast ratio: 350:1

Graphics support

NVIDIA GeForce FX 5200 Ultra graphics processor with AGP 8X support
64MB of dedicated Double Data Rate (DDR) video memory
17-inch display resolutions:
16:10 aspect ratio
1440 x 900 pixels (native)
1152 x 720
1024 x 640
800 x 500
4:3 aspect ratio
1024 x 768 pixels
800 x 600
640 x 480
20-inch display resolutions:
16:10 aspect ratio
1680 x 1050 pixels (native)
1344 x 840
1280 x 800
1024 x 640
840 x 524
800 x 500
4:3 aspect ratio
1024 x 768 pixels
800 x 600
640 x 480

Video

VGA output port for video mirroring on external display or projector2
S-video and composite video output to connect directly to a TV or projector2
Output resolutions: 640 x 480 pixels at 60Hz, 800 x 600 pixels at 75Hz and 1024 x 768 pixels at 75Hz

Audio

Built-in stereo speakers
Internal 12-watt digital amplifier
Headphone/optical digital audio output
Audio line input
Built-in microphone

Electrical and environmental requirements

Meets ENERGY STAR requirements
Line voltage: 100-120V AC or 100-240V AC, depending on country of purchase
Frequency: 47Hz to 63Hz, single phase
Maximum continuous power: 180W
Operating temperature: 50° to 95° F (10° to 35° C)
Storage temperature: -40° to 185° F (-40° to 85° C)
Relative humidity: 5% to 95% noncondensing
Maximum altitude: 10,000 feet

Size and weight (20-inch)

Height: 18.6 inches (47.2 cm)
Width: 19.4 inches (49.3 cm)
Depth: 7.4 inches (18.9 cm)
Weight: 25.2 pounds (11.4 kg)5

Size and weight (17-inch)

Height: 16.9 inches (43.0 cm)
Width: 16.8 inches (42.6 cm)
Depth: 6.8 inches (17.3 cm)
Weight: 18.5 pounds (8.4 kg)5



1GB = 1 billion bytes; actual formatted capacity less.
Requires adapter, sold separately.
Compatible ISP and telephone services required. Your ISP may not support all V.92 features. Modem will function according to V.90 standards if V.92 services are not available. Actual modem speeds lower.
Wireless Internet access requires AirPort Extreme Card; AirPort, AirPort Express or AirPort Extreme Base Station; and Internet access (fees may apply). Some ISPs are not currently compatible with AirPort.
Weight varies by configuration and manufacturing process.

Internet access requires a compatible Internet service provider; fees may apply.
Product contains electronic documentation.
Backup copy of software is included.
