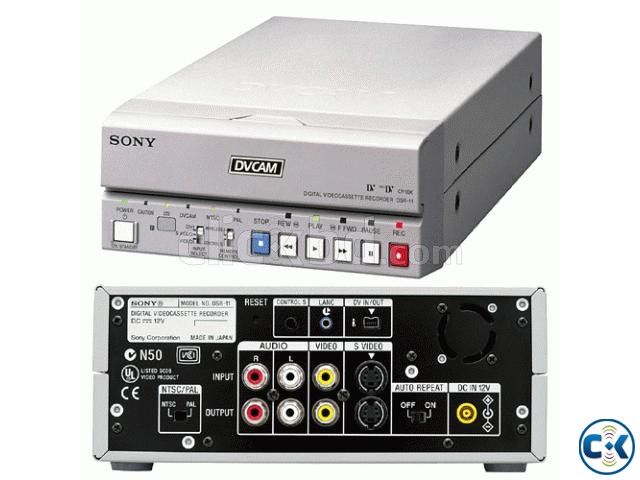

SONY DVCAM DSR-11

System NTSC/PAL switchable
DC input DC Jack Type4
Operating Temperature 5 C to 40 C
Tape Speed DVCAM mode: 28.221 mm/s DV (SP): 18.831 mm/s
Storage Temperature -20 C to 60
Recording Playback time Standard size(DVCAM)

(DV)

Mini size(DVCAM)

(DV)

: 184 min with PDV-184

270 min

40 min

60 min

Tape rewind time With PDV-184ME/N/MEM: less than 2 min
Search Speed When controlling via optional DSRM-20/10: Still, +/- 1/5, 1, 2 times, Cue/Review(+/- 10 or 18 times)
Video Signal Input Composite Video(RCA pin x 1)

S-Video (DIN 4-PIN x 1)
: 1.0 Vp-p, 75 Ohm, Sync negative

Y:1.0 Vp-p,75 Ohm
C:0.3 Vp-p(subcarrier burst), 75 Ohm
Video Signal Output Composite Video(RCA pin x 1)
S-Video(DIN 4-PIN x 1)
: 1.0 Vp-p, 75 Ohm, Sync negative

Y:1.0 Vp-p,75 Ohm
C:0.3 Vp-p(subcarrier burst), 75 Ohm
Audio Signal Input Phono jack x 2 (L,R): 2 Vrms (full bit)
Audio Signal Output Phono jack x 2 (L,R): 2 Vrms (full bit)
i.LINK (DV In/Out) 4-pin x 1: IEEE 1394-based


Features

• NTSC/PAL compatibility
Play tapes recorded on both the PAL and NTSC systems on your DSR-11. You can record using either system too; simply slide a switch to select the incoming source.
• i.LINK interface
Using the integrated 4-pin i.LINK interface you can duplicate entire tapes and transfer audio, video and command signals to a PC.
• Time code write through i.LINK
The DSR-11 can copy timecode from a non-tape source. This is useful when video edited on a PC or other NLE system has new timecode.
• Wireless remote commander supplied
The DSR-11 comes with a wireless remote commander, RMT-DS11, which provides menu control for precise settings. Most of the VCR?s functions can be controlled from the commander, making it ideal for use during presentations.
• Standard and mini cassette compatibility.
The DSR-11 accommodates both standard and mini-size cassette tapes. On the standard DVCAM cassette you can record for up to 184 minutes; on the mini-cassette for 40 minutes.
• DV format recording and playback.
With your DSR-11 you can record and play back DV-format tapes (SP mode only). DV format allows a longer recording time.
• Unique design and small footprint.
Save space with the compact DSR-11. You can place it either horizontally or vertically for easy and unobtrusive integration into your work environment.
