Momentum Server BX1200 Basic (Intel Xeon E-3 1220)

Warranty: Available for 3 years

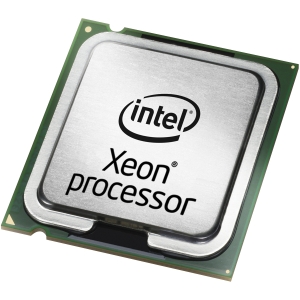

Processor: 1 x Quad Core Intel Xeon E-3 1220 2nd Generation
[3.10GHz, 8MB Intel Smart L3 Cache, 4C/4T, Intel HT, Intel TB 3.40, LGA-1155 Socket, 32nm, 80w TDP]

Mother Board: Intel S1200BTS with Intel C202 chipset, Form Factor- Micro ATX (9.6”x9.6”)

# Expansion Slots #
Four Total I/O Slots:
● One1 PCI Express* 2.0 x8 slot (x16 mechanical)
● One PCI Express 2.0 x8 slot (x8 mechanical)
● One PCI Express 2.0 x4 slot (x8 mechanical)
● One PCI 32/33 (5V) slot

RAM :4GB (4GBx1=4GB) DDR3 1333bus ECC Server Memory
RAM Support: Max 32GB in 4 DDR3 DIMM sockets (Unbuffered Only)
● Two channel native (1066/1333MHz)

Storage: 1x500GB SATA (7200 RPM, 3.5 inch Internal)

SATA Support: 6 SATA Ports (3 Gbps)

RAID Support: Integrated SATA :
● Intel Embedded Server RAID Technology with host based SW RAID levels 0,1,10
● Intel Rapid Storage Technology with host based SW RAID levels 0,1,10,5

Optical device: DVD Writer SATA

Chassis: IN-WIN EA035 Chassis with 300watt real rated Powerman Server Grade PSU (www.in-win.com)

OS Support: Windows, Linux
