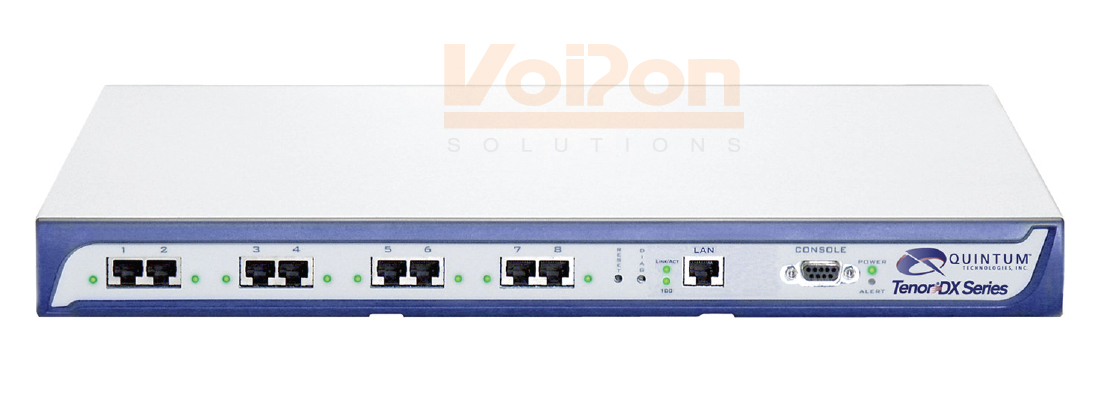

Quintum DX Tenor DX2030 VoIP Gateway 2 x E1 & 30 SIP Channel

*** it cost more then 1 lakh ... but its urjent thats why want to sell it so only wanted buyers call me asap ... ****

***** 01754222666 or 01749006655 *********

for details you can visit website of this product ... link : http://www.voipon.co.uk/quintum-tenor-dx2030-p-1520.html


Tenor S (Survivable MultiPath Switch) Offers a Survivable Branch Office VoIP Access Solution for IP PBXs and IP Centrex

Enterprises can benefit from a variety of valuable applications such as PBX extension, remote office connectivity, long distance consolidation and call centers. Service providers can deploy numerous VoIP applications such as SIP Trunking, Wholesale VoIP Termination, Calling Cards, Tandem Switching and Least Cost Routing. Product scales from a fractional T1/E1, with 8 simultaneous VoIP channels up to a full 8 span MultiPath Switch supporting 120 simultaneous VoIP calls.

Both versions of Tenor include the features that made Quintum the VoIP market value leader

MultiPath architecture for easy integration with existing voice and data infrastructure, meaning little or no re-programming of the PBX, or upgrades are required and no need for special dialing plans.
Transparent MultiPath Call Routing to intelligently route calls between the PBX, the PSTN, and the IP network to achieve the best combination of cost and quality. The Tenor can also route calls over IP to reduce costs, and then transparently "hop off" to the PSTN, to reach off-net locations.
Auto Provisioning interface allows the Tenor solution to be deployed worldwide, and configured automatically by acquiring the configuration information from a central server, upon installation. The same auto-provisioning capability allows the Tenor to be configured from a VoIP application, thus supporting a single user interface between the VoIP application and the Tenor configuration.
Unified Communications Proxy (UCP) provides 'Any to Any' connectivity: SIP - SIP, TDM - TDM and SIP - TDM, for easy integration with any network.
Universal Dial Plan that provides a programmable dial plan so Tenor can be integrated into any network environment.
PacketSaver™ Technology multiplexing to reduce bandwidth consumption by up to 57% by combining voice packets from multiple calls into a single packet.
NATAccess™ to allow Tenor to operate behind NAT firewalls to translate internal IP addresses into public addresses when a VoIP call is established with an outside party.
Remote Management for anywhere, anytime remote management even behind NAT firewalls with Quintum's Remote Management Session Server.

Call Management Features

Automatic call type detection: Voice/Modem/Fax
Answer and Disconnect Supervision
Trunk group support
Public and private dial plan support
User programmable dial plan support
Forced routing
Pass-through support for calls to Toll Free, local and special service numbers (emergency services, etc.)
Automatic appending and stripping of digits to dialed numbers
Call Detail Records
Least Cost Routing with external Quintum VoIP Call Routing Server*
Caller ID Name and Number

Technical Specifications

Telephony Specifications

Voice algorithms: G.723.1 and G.729ab, G.711
Auto codec negotiation
Fax Support: Group III at 2.4, 4.8, 7.2, 9.6, 14.4 Kbps, using industry standard T.38; Super G3 compatible up to 33.6 Kbps
Modem support with G.711
Choice of 2, 4, 6, or 8 T1/E1/PRI Spans
Standard RJ-45 Connectors
Coding: A-law, µ-law
Enhanced (Carrier Grade) Echo Cancellation: ITU Rec. G 168, up to 128 msec tailsize
PRI Signaling Protocols: National ISDN-2, Euro ISDN NET5, Japan INS-NET1500, KDD, 4ESS, 5ESS, DMS100
T1 CAS (E&M, Loop Start, Feature Group-D, DTMF, MF)
E1 CAS (R2 MF)
DASS2
Tandem/TDM switching
Maximum Call Rate: 7,200 calls/hour
VoIP to circuit, and circuit to circuit (Tandem/TDM) switching

IP Network Specifications

LAN Interface: Fast Ethernet port (10/100Base-T)
Standard RJ-45 Interface (IEEE 802.3) for 10Base-T or 100Base-T connections
QoS Support: IP TOS, DiffServ

VoIP Network Specifications

H.323 v.3 Gateway and Integrated Gatekeeper+
Support for multiple SIP User Agents (RFC3261 compliant endpoint)
DTMF Signaling via RFC 2833 or SIP Info
SIP Supplementary Services
Message Waiting Indicator
SIP Refer Method support
IVR/RADIUS server support for AAA with integrated multi-lingual IVR+
Adaptive Voice Activity Detection (VAD) with Comfort Noise Generation (CNG)
Adaptive Jitter Buffer
Packet Loss Concealment
NATAccess™ - NAT/Firewall
Security: IP Filtering
Up to 120 simultaneous VoIP calls
Support for DNS-SRV

Configuration / Management

Auto-Provisionable
Quintum Tenor Configuration Manager (GUI) for configuration of remote individual Tenors
Quintum Tenor Monitor (GUI) for alarm monitoring, call monitoring and CDR monitoring
Remote access with external Remote Management Session Server
SNMPv2 Agent
Command Line Interface
