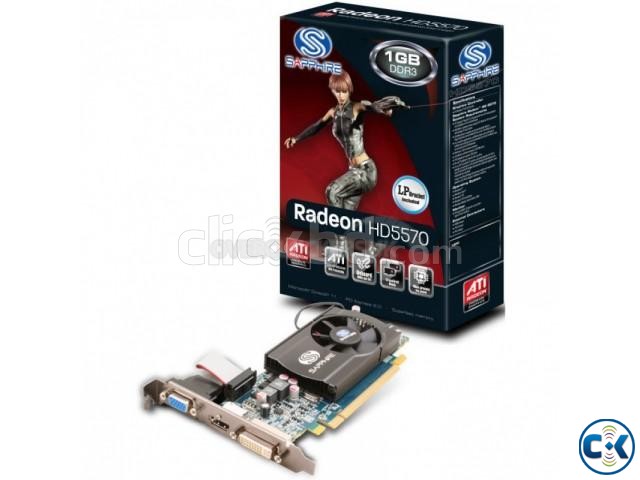

Sapphire AMD ATI Radeon HD5570 1 GB DDR3 DP/DVI-I/VGA Graph

Asking Price:
Tk. 3,000

Member since 03 Apr 2013
Mymensingh , Bangladesh
Face-to-face transaction
Not offered
Do not pay before verifying
  • New/Used: used
Category: Computers > Computer Parts > > > Sapphire AMD ATI Radeon HD5570 1 GB DDR3 DP/DVI-I/VGA Graph

DESCRIPTION ( Sapphire AMD ATI Radeon HD5570 1 GB DDR3 DP/DVI-I/VGA Graph )

Sapphire HD 5570 specs
Stream Processors AMD ATI Radeon HD 5570
627 million 40nm transistors
TeraScale 2 Unified Processing Architecture: 400 Stream Processors, 20 Texture Units, 32 Z/Stencil ROP Units, 8 Color ROP Units
GPU Clock 650 MHz
Memory Amount 1.0 GB
Memory Clock 900 MHz
Data Rate 1.8 Gbps
Memory Type DDR3
Memory Interface 128-bit
Memory Bandwidth 28.8 GB/s
Bus Type PCI Express 2.1 x16
Bus Speed PCIe 2.1
Rendering Pipelines Not specified by manufacturer
Geometry Engines Not specified by manufacturer
Geometry Rate Not specified by manufacturer
Pixel Fill Rate 5.2 Gigapixels/s
Anti-aliased: 20.8 Gigasamples/s
RAMDAC Not specified by manufacturer
3D Graphics Architecture DirectX 11 support:
Shader Model 5.0
DirectCompute 11
Programmable hardware tessellation unit
Accelerated multi-threading
HDR texture compression
Order-independent transparency
OpenGL 3.2, 3.3, and 4.0 support
Image quality enhancement technology:
Up to 24x multi-sample and super-sample anti-aliasing modes
Adaptive anti-aliasing
16x angle independent anisotropic texture filtering
128-bit floating point HDR rendering
Processing ATI Stream acceleration technology:
OpenCL Support
DirectCompute 11
Accelerated video encoding, transcoding, and upscaling
ATI CrossFireX multi-GPU technology: Dual GPU scaling
Advanced Display Features ATI Eyefinity multi-display technology:
Three independent display controllers - Drive three displays simultaneously with independent resolutions, refresh rates, color controls, and video overlays
Display grouping - Combine multiple displays to behave like a single large display
ATI Avivo HD Video & Display technology:
UVD 2 dedicated video playback accelerator
Advanced post-processing and scaling
Dynamic contrast enhancement and color correction
Brighter whites processing (Blue Stretch)
Independent video gamma control
Dynamic video range control
Support for H.264, VC-1, MPEG-2, and Adobe Flash (Requires Adobe Flash Player 10.1 plug-in and ATI Catalyst 9.11 or higher video driver)
Dual-stream 1080p playback support
DXVA 1.0 & 2.0 support
Integrated dual-link DVI output with HDCP
Integrated DisplayPort output
Integrated HDMI 1.3 output with Deep Color, xvYCC wide gamut support, and high bit-rate audio
Integrated VGA output
3D stereoscopic display/glasses support (3D stereo drivers, glasses, and display)
Integrated HD audio controller: Output protected high bit rate 7.1 channel surround sound over HDMI with no additional cables required; Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats
Power Management ATI PowerPlay power management technology:
Dynamic power management with low power idle state
Ultra-low power state support for multi-GPU configurations
Multimedia Support
FM Tuner Not specified by manufacturer
TV Tuner Not specified by manufacturer
DTV Tuner Not specified by manufacturer
HDTV Capable Yes, via HDMI
Hardware MPEG MPEG-2
Display Support
Computer Analog Yes, via 1x D-Sub(VGA)
Computer Digital Yes, via Dual-Link DVI, DisplayPort
Video Yes, via HDMI 1.3 output
Multiple Display Configuration Supports up to 3 displays (requires 1 monitor with DisplayPort)
Display Resolutions
Analog 2048 x 1536 via D-Sub(VGA)
Digital 2560 x 1600 at 60 Hz via Dual-Link DVI / DisplayPort
Video 1920 x 1200 via HDMI 1.3
Max Resolution 2560 x 1600 at 60 Hz via Dual-Link DVI / DisplayPort
I/O Connections
Analog (PC) 1x D-Sub(VGA)
Digital (PC) 1x Dual-Link DVI
1x DisplayPort
Video 1x HDMI 1.3 output
General Attributes
System Requirements Windows 7, Vista, XP
1.0 GB minimum system memory
Available PCIe x16 slot
Blu-Ray, DVD-ROM or CD-ROM drive for installation
400 W power supply
To enable 3-display support: 1 monitor must support DisplayPort
For an AMD CrossFireX system, a second same AMD Radeon graphics card, an AMD CrossFireX Ready motherboard and one AMD CrossFireX Bridge Interconnect cable per graphics card (optional) are required
Power Consumption 39 W
