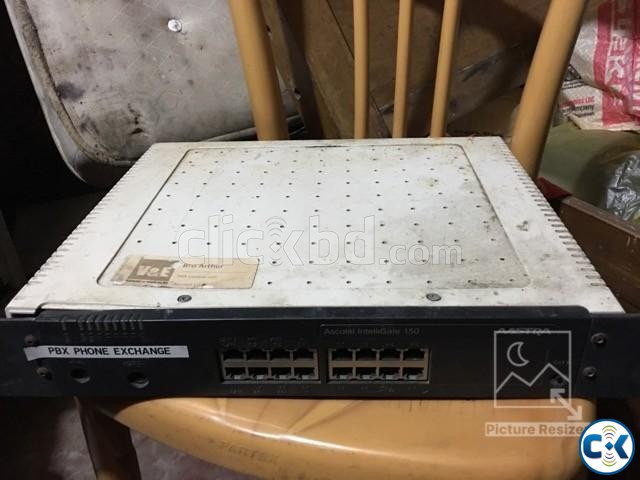

AASTRA Ascotel IntelliGate 150 IP Phone System PBX

Aastra IntelliGate 150 is the ideal system for companies and organizations

Encompassing a range of different technologies, it is the right long-term decision. And thanks to its integrated VoIP functionality it is a future-oriented communication platform.

Based upon the current technological change in communications technology, the move away from traditional line switched telephony (analogue, ISDN) to voice transmission via the data network (Voice over Internet Protocol), the ability of a system to cope with the future has become of central importance.

With a solution that encompasses a range of different technologies, you will always make the correct long-term selection. In this situation you can independently decide when you will give priority to which technology. A modern communications system should also possess an open system architecture in order to be able to maintain technological independence with regard to additionally available components and applications.

With VoIP, you call cost-free throughout the entire internal communications network. Even networking with the Aastra IntelliGate 20x5 system family functions without problems. The expansion of an existing Aastra IntelliGate Network (AIN) with an Aastra IntelliGate 150/300 can be done at any time. Connections to third-party systems are implemented via the QSIG interface.

· Future-oriented communications platform with integrated Voice over IP (VoIP) functionality
· Suitable for companies from all sectors
· Modular expansion and upgrade path
· Optimised everyday use thanks to a broad range of terminals with intuitive user guidance
· Wide range of advanced features and team functions for efficient working
· Compact design telephone handset range
· Direct connection of IP telephone terminals
· Fully integrated cordless telephony (DECT) for availability throughout the company’s premises
· Possibility to integrate external terminals (e.g. mobile telephones) as internal subscribers
· Support of Voice over Wireless LAN-Components
· SIP compatible for trunk lines and terminals
· Integrated, highly-functional voice mail system
· Integrated automatic call switching (Auto Attendant)
· Call-Centre CTI functions: Name selection, Clip display, Microsoft Outlook calendar notification on Office telephones
· E-mail notification of waiting voice messages
· Link to external directories/contact databases (e.g. Microsoft Exchange, Microsoft Outlook, telephone book CD)
· Alarm generation solutions (e.g. in production environments)
· Flexible linking of a wide range of third-party applications via standardised interfaces (TAPI, Corba)
· Fully featured transparent networking for up to 11 systems or sites using Voice over IP (applies to Aastra IntelliGate 300 only)
· Efficient system management
· Remote maintenance/remote alarm system possible
· Flexible wall table and rack mounting
· Web based configurator
· Maximum configuration
· Total no. of terminals 12
· 12 Aastra IP terminals
· 10 Aastra SIP terminals
· 10 Aastra digital terminals
· 10 ISDN terminals (2 per S-Bus)
· 10 Analogue terminals
· 10 DECT terminals
· 10 DECT radio cells (4 channel)
· 5 DECT radio cells (8 channel)
· 20 GSM terminals
· 10 terminal interfaces digital
· 10 terminal interfaces analogue
· 6 terminal interfaces ISDN
· 8 LAN ports (optional)
· Total No. of SIP trunk channels: 8
· 4 Digital trunk interfaces T0 (2B)
· 2 digital trunk interfaces T2
· 4 Analog trunk interfaces
