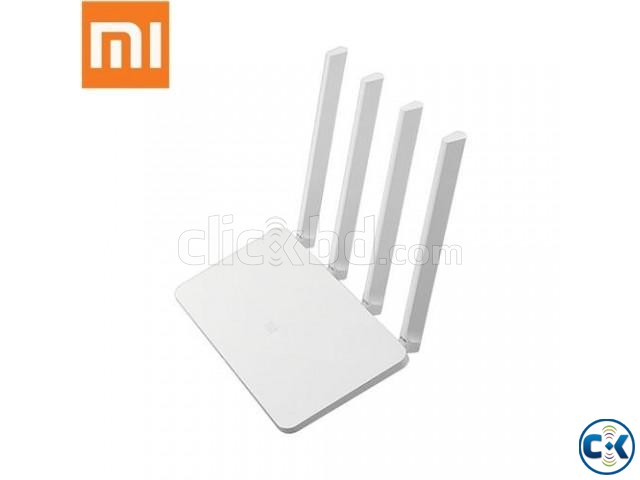

XIAOMI MI WIFI ROUTER 3C

CPU MediaTek MT7628N
ROM 16MB NorFlash
RAM DDR2 64MB
Modulation 11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
11g:OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),64QAM(48/54Mbps)
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
Receiver sensitivity 11Mbps:≤-90dBm
54 Mbps:≤-72dBm
HT20 MCS7:≤-69dBm
HT40 MCS7:≤-66dBm
Supported languages Simplified Chinese
Wireless Security WPA-PSK / WPA2-PSK encryption, wireless access control (black list), SSID hiding
Сooling system Natural cooling
Features Two 10 / 100M adaptive LAN port (Auto MDI / MDIX)
A 10 / 100M Adaptive WAN port (Auto MDI / MDIX)
A red / blue / yellow three-color LED indicator
A system restore factory settings button
A power input interface
Operating system OpenWRT
MiWiFi ROM
Open Platform Support Web, Android, iOS
Wireless Type 2.4GHz 2.4G WiFi — 2X2 (IEEE 802.11N protocol support rates up to 300Mbps)
Wireless standard IEEE 802.11a / b / g / n, IEEE 802.3 / 3u
Frequency response 90 — 18 KHz (-10dB)
Rated power 5W
Operating temperature 0 ℃ – 40 ℃
Operating humidity 10% −90% RH (non-condensing)
