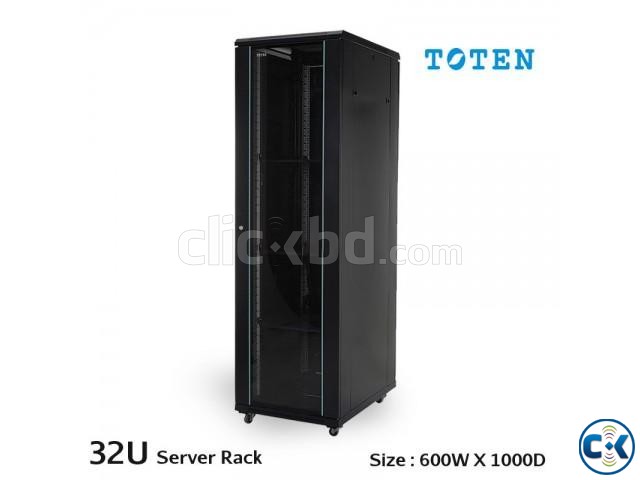

TOTEN 32U Server Rack Cabinet 600x1000mm Standing Server Rack Cabinet/ Equipment Rack / Enclosure – 32U, 19″. Size : (W600 x D1000 x H1600mm).
TOTEN Professional Equipment Rack / Cabinet / Enclosure – 32U, 19″ (W600 x D1000 x H1600mm)
Model : GS.6032.9001
Standard Features of TOTEN 32U Server Rack Cabinet :
600 x 1000 x 1600mm (Width x Dept. x Height )
Full Vented Top Frame with Front / Rear / Side Cable Entrance
4 Top Fan Tray with Guard (Low Noise)
Moveable side doors with lock
Glass front door With Push Lock
Rear Solid door With Push Lock
Color : Black
Panel Mount Support- 1 Set
Panel Mount with Unit Indication
Base Frame with Provision of Cable Entrance
1 Set of Heavy Duty Castor Wheels
1 Set of Leveling Stand
One fixed shelf
One slipping shelf
Power Distribution Unit ( 8 Way Vertical ZeroU PDU) with 13A UK-Type Sockets
1 Packet of M6 Cage Nuts Assembly
Comply with ANSI/EIA RS-310-D、IEC297-2、DIN41494; PART1、DIN41494;PART7, ETSI standard.
TOTEN 32U Server Rack Cabinet `s Features:
Exquisite design with precise dimension and craftsmanship;
Hexagonal reticular high-density vented plate front door and rear door;
Adjustable feet and heavy duty castors are available at the same time;
Several lockable cable entry on top cover and bottom panel with adjustable sizes;
Optional plinth enables cabinet to stay in a fixed position, meeting requirements of under-base cable entry/ventilation and prevention;
Efficient cabinet baying kit(patent);
Removable side panels, easy to install and maintain;
Around 1/2~2/3 of original assembled volume when flat pack.
SPCC cold rolled steel;
Thickness: mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.
Degreasing, pickling, phosphoric, powder coated;
Degree of protection:
Static loading: 800KG
