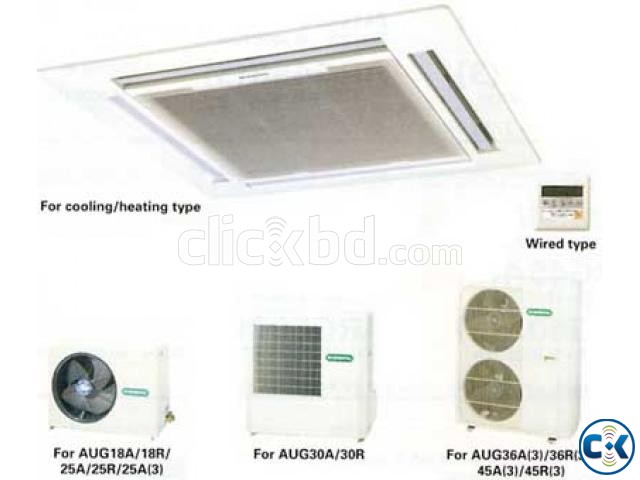

Fujitsu General ABG54A 5.0 Ton Ceiling / Cassette AC
• Double swing automatic
• Long-life filter
• Drain water lift-up mechanism
• Fresh-air intake
Specifications
Model No. Indoor Unit ABG54A
Outdoor Unit AOGR54A
Capacity Class BTU/h 54,000
Input Power V/φ/Hz 48,000-47,400
Capacity Cooling BTU/h 43,300-42,300
Heating -
Cooling kW 14.1-13.9
Heating -
Power Consumption Cooling kW 5.25-5.20
Heating -
EER Cooling kW/kW 2.69-2.67
Heating -
Running Current Cooling A 8.9-9.0
Heating -
Moisture Removal Pints/h
11.7
Liter/h (5.5)
Room Air Circulation (High) C.F.M
1236
(m³/h) (2,100)
Indoor Unit Dimensions Weight H / W / D (mm)
240 × 1,660 × 700
kg(lbs) 48.0 (106)
Outdoor Unit Dimensions Weight H / W / D (mm)
1,152 × 940 × 370
kg(lbs) 112.0 (246)
Refrigerant R22
Connection Method Flare
* Cooling/Heating capacities are based on the following conditions.
Cooling
- Indoor temperature : 27°C DB/19°C WB
- Outdoor temperature : 35°C DB/(24°C WB) Heating
- Indoor temperature : 20°C DB
- Outdoor temperature : 7°C DB/6°C WB
@@--------------------------------------------------------------------@@
@@--------------------------------------------------------------------@@
