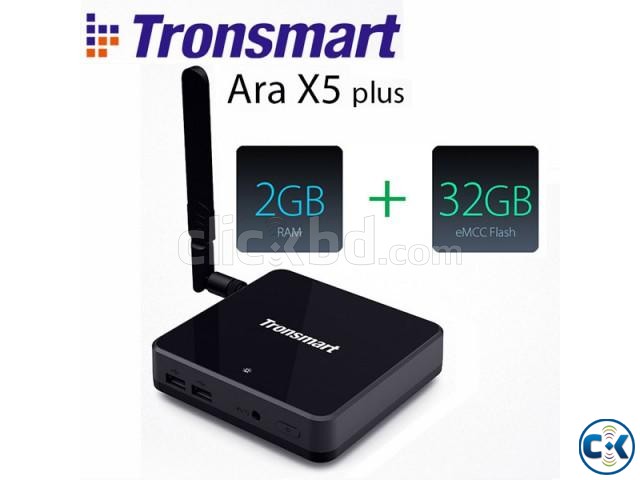

Tronsmart Ara X5 Plus Windows 10 Mini Pc Tv Box

14nm Cherry Trail Z8300

As the pioneer in Mini PC market, Tronsmart is the first brand to feature Ara X5 Plus with Intel Cherry Trail CPU: Z8300. Z8300, the premier Intel Atom CPU, took the initiative to apply 14nm Soc technology, next generation micro architecture which leads the market for approximate 2 years. In the meantime, it is also equipped with 1.8G 64-bit Quad core CPU as well as Gen 8 graphics.



Pre-installed Windows 10



Tronsmart Ara X5 Plus is pre-installed with licensed Windows 10 home, so that our users are able to enjoy the advanced functions of Windows OS directly. Moreover, the built-in Cortana in Windows 10 can turn Ara X5 into a work assistant as well as life-partner. With Windows 10 OS, you can sync game display to any devices of Windows 10 OS. What an amazing scenario! When your friends are watching football matches on TV, you can play games on Xbox and display on another PC screen.



Fanless Design



With fanless design, Ara X5 Plus offers quiet but stable system performance, with embedded systems performing steady heat dissipation under industrial automation control. Ara X5 is marked by high performance dual-layer PCBA, characterizing of heat sink design. Even through fanless, it still fulfills desirable temperature control performance on CPU.



Acrylic Panel



Continuing on the inspirational design of Ara BJ19, Ara X5 Plus adopts Acrylic panel and the whole mould structure, but with far more thinner, lighter figure.



Intel 3160



Thanks to the Intel 3160 Wi-Fi module, Ara X5 Plus supports 802.11 a/b/g/n/ac 2.4Ghz/5Ghz and embedded with BT 4.0 module, it is capable of cutting down power consumption and minimizing delay by 3-milliseconds, with transfer-distance over 10 meters, apart from AES-128 coding support. It is compatible with 2.0, 2.1 and 3.0, all BT standards



2G+32G eMMC v5



Tronsmart Ara X5 Plus boasts 2GB DDR3 RAM, and 32GB eMMC v5 Flash, advantageous in performance, security and reliability, ascribing to the eMMC memory, ultimately delivering a richer end-user experience. Ara X5 Plus ultilizes eMMC5.0 technology, with read & write speed doubles that of the eMMC v4.5



Highlights

Brand : Tronsmart

Model Ara : X5 Plus

Color : Black

Material : Plastic

System

Operating System : Pre-installed Windows 10 Authorized

CPU : Cherry Trail Z8300 14nm 1.8G 64-bit Quad core

GPU : Gen 8 Graphics

RAM : 2GB DDR3L

ROM : eMMC 32G

Communication

Wifi : Connectivity 802.11 a/b/g/n/ac 2.4Ghz/5Ghz

Ethernet : 100m

Bluetooth : 4.0

Media

Video Supported : HD MPEG1/2/4,H.264, H.265,HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10

Audio Supported : MP3,WMA,AAC,WAV,OGG,AC3,DDP,True HD,DTS,DTS,HD,FLACAP

Picture Supported : JPEG,BMP,GIF,PNG,TIFF,etc.

Interfaces

HDMI Port : Standard HDMI female

Other Interfaces : USB2.0*2

USB : 3.0*1

Audio out & Mic-in *1

LAN(100Mbps) * 1

HDMI Type A * 1

Power Button * 1

Micro SD Slot * 1

DC-IN * 1

Other Features

3G N/A

Other Function Status Indicator

White LED lights (power on); White LED lamp (power off)

Power 5V/3A

Wake On LAN N/A

Language

English (install other languages manually)

VGA NO

Dimension & Weight (Main Product)

Dimension 4.65*4.47*1.06in

Weight 7.44oz

Package Contents

1 x TV box

1 x HDMI cable

1 x Power adapter (A right AC Adapter will be sent as your shipping country)

1 x User manual
