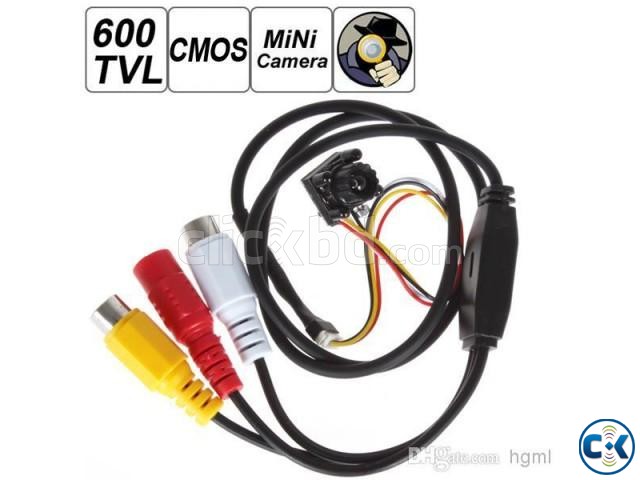

Hidden Camera

Technical Specification
Camera Lens: 6mm
Image Sensor: 1/3 Inch CMOS
Resolution: 1280 x 960
Pixel: 1 Mega pixel
Horizontal Resolution: 600TVL
Minimum Illumination: 0.5LUX
Positive S/N Ratio: >48dB
Backlight Compensation: +0.7
Gama Characteristic: 0.45
Image Color: Color / B & W
TV Format: NTSC
Video Output: 1Vp - p 75Ohm
Frame Speed: - 60f/s NTSC
IR Quantity: 8
Night Vision Distance: 5m
Infrared Wavelengths: 940nm
White Balance: Auto
Synchronization System: Interior Synchronization
Power Source: DC 12V, 1A/2A
Power Consumption: 80mA
Operating Temperature: -10 ~ + 50 Centigrade
Color: Black
Camera Size: 10 x 10 x 10 mm
Overall Length: 70cm
Package Dimensions(L x W x H): 68 x 48 x 45 mm
Product Weight: 28g
Operational Guidance:
*Connect with power adapter and video output connector.
*Connect the yellow AV video and white audio output with the monitor.
*Connect with the DVR or video card if you want to record the video and audio.

Package Including:
1 x 600TVL 1/3 Inch CMOS Sensor
1 x User Manual
