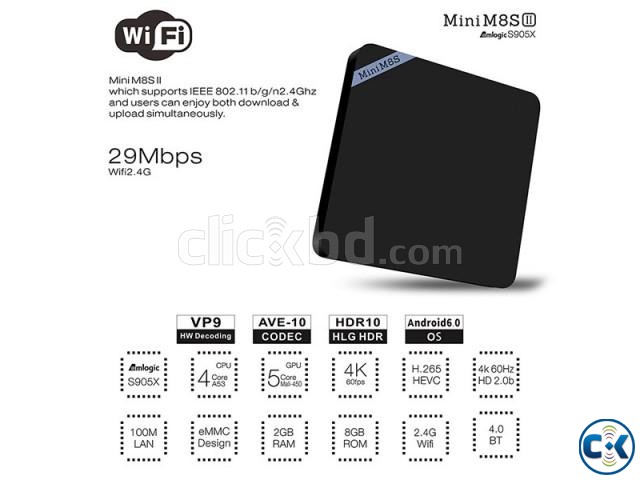

Android 6.0 Marshmallow Tv Box Mini M8S II 2G/8G

Mini M8S II Android 6.0 Marshmallow Amlogic S905X Quad Core Cortex A53 2.4GHz 2GB 8GB 4Kx2K BT 4.0 Streaming Media Player
1.CPU: Amlogic S905X Quad Core ARM Cort-A53 Up to 2GHz(DVFS)
2.GPU: Penta Core ARM Mali-450 Up to 750MHz+(DVFS)
3.DDR3 2GB, ROM Onboard eMMC Flash 8GB
4.Android 6.0 . Bluetooth 4.0 .Support 2.4G Wifi, USB2.0
5.Support UHD 4K, H.264, H.265, 1080P and HDR10 and HLG HDR processing

Product model : Mini M8S II
Processor Number : Amlogic S905X

• System Config

OS : Android 6.0
Language : Multi -language
CPU : Amlogic S905X Quad Core ARM Cortex-A53 CPU up to 2GHz(DVFS)
GPU : Penta Core ARM Mali-450 GPU up to 750MHz+(DVFS)
RAM : DDR3 2GB
ROM : Onboard eMMC Flash 8GB
Ethernet : 100Mbps LAN
WIFI : IEEE 802.11b/g/n,2.4G
BT : BT 4.0
Antenna : Built-in antenna for WIFI
Expand Memory : Micro SD Card (Maximum support 32GB)

• Button & Ports
Button : Not Power Button(Connecting the power supplies,automated system operation)
DC-in : 1*DC in Port
USB2.0 : 2* Standard USB Port
HD : 1*HD A Type Port
RJ45 : 1*RJ45 (100Mbps network connection)
SPDIF : 1*S/SPDIF (5.1CH, 7.1CH)
TF Card Slot : 1* Micro SD card slot
Power LED : 1* power LED with two - color

• Powerful codec capabilities
UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+
FHD 1080p 60fps HW encoding, supports H.264

• Video/Picture Decoding
VP9 Profile-2 up to 4Kx2K 60fps
H.265 HEVC MP-10 L5.1 up to 4Kx2K 60fps
H.264 AVC HP L5.1 up to 4Kx2K 30fps
H.264 MVC up to 1080P 60fps
MPEG-4 ASP L5 up to 1080P 60fps
WMV/VC-1 SP/MP/AP up to 1080P 60fps
AVS-P16(AVS+)/AVS-P2 JiZhun Profile up to l080P 60fps
MPEG-2 MP/HL up to 1080P@60fps(ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps(ISO-11172)
RealVideo 8/9/10 up to 080P@60fps
WebM up to VGA
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding(ISO/IEC-10918)
Supports JPEG thumbnail,scaling,rotation and transition effects
Supports*.mkv,*.wmv,*.mpeg,*.dat,*.avi,*.iso,*mp4,*.rm and*.jpg file formats

• Video Post-Processing Engine

1. Supports HDR10 and HLG HDR processing
2. Motion adaptive 3D noise reduction filter
3. Advanced motion adaptive edge enhancing de-interlacing engine
4. 3:2 pull-down support
5. Programmable poly-phase scalar for both horizontal and vertical dimension for zoom and windowing
6. Programmable color management filter(to enhance blue,green,red,face and other colors)
7. Dynamic Non-Linear Luma filter
8. Deblocking filters
9. Programmable color matrix pipeline
10. video mixer: 2 video planes and 2 graphics planes per video output

• Video Output

1. Built-in HD 2.0b transmitter including both controller and PHY with CEC,HDR and HDCP 2.2,
4Kx2K@60 max resolution output
2. CVBS 480i/576i standard definition output
3. Supports and standard SD/HD/FHD video output formats: 480i/p,576i/p,720p,1080i/p and 4Kx2K

• Audio Decoder and Input/Output

1. Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
2. 12S audio interface supporting 2-channel input and 8-channel(7.1) output
3. Built-in serial digital audio SPDIF/IEC958 output and PCM input/output
4. Built-in stereo audio DAC
5. Stereo digital microphone PDM input
6. Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

• Power management : AdapterDC5V 2A(100-240V,50/60Hz)

• Environment Work : 5°C -- 35°C,30%--90% Humidity
