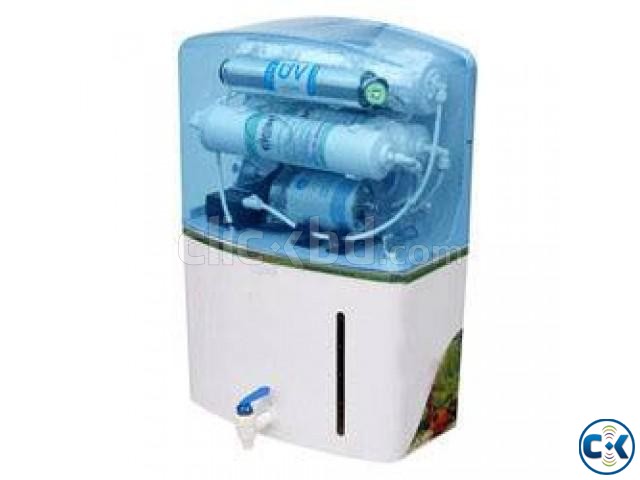

New Box RO water purifier

SPECIFICATIONS
Purification capacity : 10-15 liters/hour
Storage Tank capacity : 10 liters
Space consume : wall mounted
Stage of purification : 5 stages If you need more stages RO choose here 7stage OR 12stage
Filter cartridge : 1-pre filter, 2-sediment filter, 3-pre carbon filter, 4-RO membrane, 5-ultra violet (uv) and TDS adjuster
Ro membrane : 1812 50 GPD Membrane (USA)
Maximum Input TDS : 1200 TDS
TDS reduce : 80% to 95% of raw water tds
TDS adjustable : Total dissolved solids adjustable
UV lamp power : 11 watt
Pump : 24 V DC Booster Pump If you need Heavy Duty Booster Pump (minimum life 4 year)
Inlet pressure : 0.3 kg/cm2 (approx roof tank height 6 fit above from RO)
Input voltage : 160-300 V AC (50 hz) (Any 3 pin shocked and you can operate it inverter point)
Operating voltage : 24 v dc
Electric consume : 4 to 5 unit per month
Dimension : lenth-395mm, wide-256mm, height-551mm
Weight : 10.5 kg
Plastic : unbreakable food grade plastic
Color : Transparent
Warranty : warranty 1 year replacement guaranty for 30 day’s
Installation by customer at their own cost, please contact expert technician to install this item.
1st STAGE :PRE-FILTER ; 10 micron spun dust, sand, dirty, silt and other visible particle from water.
2nd stage : SEDIMENT FILTRATION removes suspended particles, dust and other visible particle from water below 5 micron.
3RD STAGE : ACTIVATED CARBON: removes chlorine, organic impurity, chlorine smell and restore the natural color of the water.
4TH STAGE : RO membrane: removes hardness of the water, toxins, salt, harmful chemicals, bacteria, virus (total dissolve solids) like chloride, floride, nickel, led etc up to 0.0001 micron.
5TH STAGE : UV (11 watt) it provides double protection to the purified water. Kills bacteria & viruses.
10 litres of storage capacity *Purification Capacity : Upto 10 to 10 LPH (liter per hour) , Booster Pump 100 psi, 24V DC * Wall Mounted *No Dry Running of Pump Automatic water level sensor for ON/OFF *Reverse Osmosis technology *Fully Automatic *Raw water should be free from iron, heavy metals, oil, grease & free chlorine.in case of higher pressure, use of pressure reducing valve is recommended. Flow rate varies with feed water pressure, TDS, (Total dissolved solids) in feed water would not exceed 1200 ppm Due to Product improvement specifications are subject to change
WARRANTY DETAILS
Accidental Damage
against Manufacturing Defect
Replacement
Duration: 30 Days
Thank You
