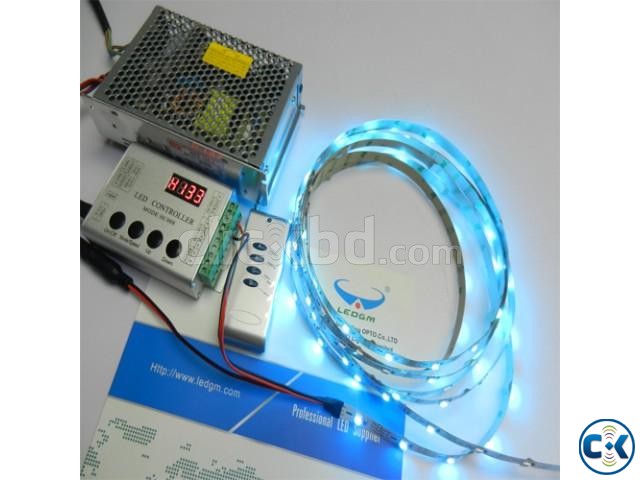

ws2812 led strip
1. Flexibility, can be bent at any angle.
2. Compact size, It has a super slim shape with the width only 12mm.
3. Abundant color modes, up to thousands of color change modes can be put in the programs.
4. Work with LED control system could get Jumping, fading, flashing, dimming mode.
5.Users can cut the ribbon every 1 LEDs.
1. WS2812 IC built-in
2. Light Source: 5050 SMD RGB
3.LED quantity: 30pcs/meter
5.Wave length(NM):R-650nm, G-520nm,B-460nm
7, 133 light colour changing modes
8, Mean well power supply and RF controller
9. Certificate: CE, RoHS
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support ws2811; When use DMX decorder, can connect to DMX system
4) Support online control
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
The product is widely used in building outline lights, entertainment decorative lighting,low-voltage DC power supply safety, convenience.
