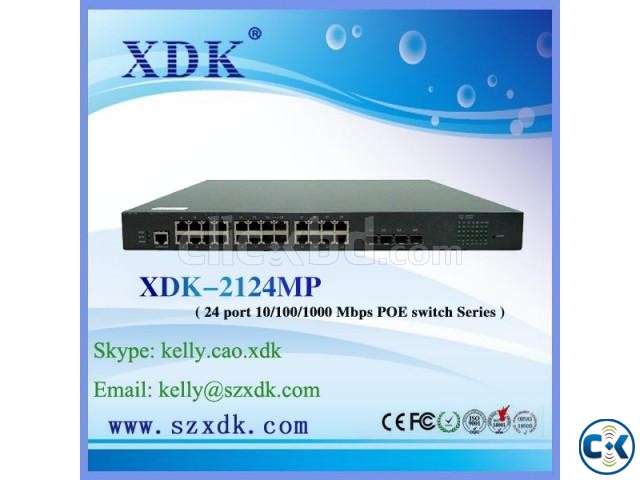

POE Network Switch, 24 port 10/100/1000 Mbps POE switch Ethernet Network Swtich with RJ45 Port

The XDK Gigabit Ethernet POE switch series is hearing XDK company uses a new generation of exchange chip developed by thehigh performance POE switches, support 802.3af, 802.3at power supply, support automatic detection function of POE, can automatically identify the end to end PD equipment required power, intelligent power supply, the maximum power savings; especially the operators of wireless city network constructionproject, video surveillance, can completely satisfy the power supply demand fora new generation of wireless AP, can adapt to all kinds of large-scale POE applications.


Superior performance:

Backplanebandwidth of up to 64Gbps, non-blocking design, support line speed forwarding;

Gigabitfiber support maximum 80 km long distance transmission, can be directlyconnected to the backbone network;

The powerful function of POE:

Support for 802.3at ( 30W ) and 802.3af ( 15.4W ) two standard powersupply;

Support automatic detection function of POE, can automatically identifythe end to end PD equipment required power, intelligent power supply, themaximum power savings;

High safety and reliability:

Provide user authentication, 802.1x and othermethods;

Powerful ACL, hardware support for the L2-L7 layerdata filtering,

Support specific ARP intrusion detection function,can effectively prevent the hacker ARP spoofing attack;

Flexible managementfunction:

Automatic recognition of straight-through cable andthe crossover cable;

The use of cluster technology, support multipledevices stacked, centralized management by using the uniform IP address, savethe address resource;

By controlling the export, Telnet, Web, SNMP etc.;


Technique Data:



XDK-2108MP

XDK-2116MP

XDK- 2124MP

Standard configuration

8 Gigabit POE port

2 Gigabit ports

2 Gigabit fiber port

1 Console port

16 Gigabit POE port

2 Gigabit fiber ports

1 Console port

24 Gigabit POE port

4 Gigabit fiber ports

1 Console port

Backplane bandwidth

24Gbps

36Gbps

64Gbps

Forwarding rate

Full wire-speed filtering and forwarding

swap mode

Store and forward

address table

8K

traffic control

Half duplex full duplex using back pressure, using IEEE802.3x

broadcast control

Inhibition of broadcast storm, reached a critical point to stop sending

Multicast control

IGMP message monitoring

Port binding

Each group of 8 of the largest, while supporting the 8 group, LACP dynamic or static polymerization

pile up

Cluster

bridge connection

IEEE 802.1D-1998 spanning tree, IEEE 802.1w ( RSTP ) and IEEE 802.1s ( MSTP )

VLAN

Port based on VLAN, 802.1Q markers VLAN, GVRP dynamic configuration of VLAN

The number of VLAN

4K arbitrary division

QinQ

support

QoS

Support quality of service ( QoS )

Head Of Line congestion avoidance mechanism

Do everything in one's power service ( Best-Effort Service )

Differentiated service ( Differentiated Service )

Strict priority round robin ( Strict Priorty )

Weighted round-robin algorithm ( Weighted Round Robin )

First come first serve algorithm ( First come first served )

TOS to mark

In support of the five tuple based QOS policy

network management

SNMP, Telnet, RMON, CLI, the common network management software to support multiple

network security

IEEE 802.1x, access control based on port, RADIUS, TACACS+

Hardware support DHCP snooping function

Hardware support DAI function, static, dynamic ARP defense

Hardware support for IP ACL ACL ACL, MAC, Vlan

Appearance size

442.5*315*44mm

Power supply characteristics

AC 110-240V adaptive, 47-63Hz, 1A/230V

POE power

XDK-2108MP, XDK-2116MP, XDK-2124MP, 400W total power;

XDK-2108MP can achieve 8 802.3af ( 15.4W ) full of or 8 802.3at ( 30W ) with;

XDK-2116MP can achieve 16 802.3af ( 15.4W ) full of or 12 802.3at ( 30W ) power supply;

XDK-2124MP can achieve 24 802.3af ( 15.4W ) full of or 12 802.3at ( 30W ) power supply;

indicator light

The power indicator, indication of system, connection / transceiver instructions, 10/100M instructions

Ambient temperature / humidity

0-50 °C-40-70°Coperation, save, 0-90% no condensation

Ordering information:

XDK-2108MP

8 full Gigabit Ethernet POE + 2 Gigabit port+ 2 Gigabit optical switch ( 1 console, 8 Gigabit POE port, 2 Gigabit ports, 2 Gigabit fiber port )

XDK- 2116MP

16 full Gigabit Ethernet POE + 2 gigabit optical switches ( 1 console, 16 Gigabit POE port, 2 Gigabit fiber ports )

XDK- 2124MP

24 full Gigabit Ethernet POE + 4 gigabit optical switches ( 1 console, 24 Gigabit POE port, 4 Gigabit fiber ports )
