GEPON OLT 4 fixed EPON ports 6 GE ports

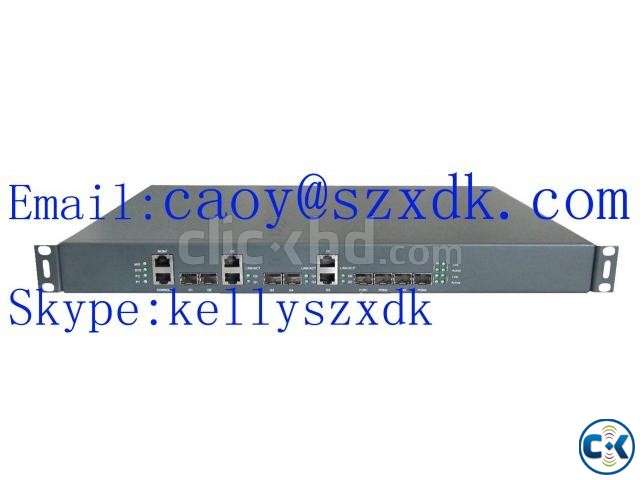

High-Performance Cabinet OLT----- XDK-E8604T
Introduction
　XDK-E8604T complies with IEEE802.3ah and P.R.C intercommunication standard, YD/T 1475-2006, supports CTC20/2.1, automatically discovers and cooperates with ONUs of different manufacturers.
XDK- E8604T OLT supports the symmetric uplink/downlink 1.25Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.
Its coupling ratio, 1:64, and its support of different hybrid ONU networks minimize the carrier’s investment.
XDK- E8604T has strong functions and QoS guarantee , and supports SLA and DBA.

XDK-E8604T
Main Advantages
XDK-E8604T is an optical network device series that is suitable for the current market; one E8604T supports up to four EPON systems, so it has the following advantages:
EPON: XDK- E8604T supports IEEE802.3ah and PRC Community Industry Standard (YD/T 1475-2006).
System’s capacity: The modularized PON card of E8604T can support one to four EPON systems simultaneously, up to 256 ONUs and the 1/64 coupling ratio.
Uplink interface: Its flexible design supports various MAN interface type groups. The optical ports or the electrical ports are selected according to network conditions.
Device size: A 1U device occupies a little space and consumes little power, decreasing the function cost of the services.
Protecting the bus optical fiber: E8604T supports that the link can be automatically switched to protect the optical fiber when trouble occurs in the optical fiber.
It is highly reliable and powered by two power sources.
Main Characteristics
It adopts the point-to-multipoint network topology, effectively collects separate Ethernet services and aggregates them on the MAN node. It connects the upper-layer devices through the GE interface and can be connected to the existing network smoothly.
The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 1Gbps bandwidth reasonably, guaranteeing a reliable QoS.
The Rapid Spanning Tree Protocol (RSTP) enables the redundant interconnection between OLT and backbone network. EAPS快速环网保护协议实现50ms的高可靠性环网保障。
They support the IGMP multicast and efficiently utilize the bandwidth. They support the multicast VLAN.
It supports the broadcast of IPTV, voice and data simultaneously.
It has rich OAM functions such as configuration, alarm, performance monitoring, trouble isolation and security management. At the same time, it supports the CLI/GUI management, which is easy to use.
Technical Parameters
Attributes E8604T
System’s capacity Maximum coupling ratio, 1:64
32G backplane bandwidth
Interface 6 GE ports (2 gigabit RJ45 ports, 2 combo ports, 2 gigabit optical ports)
4 fixed EPON ports
PON interface A 1Gbps transmission rate with downlink and uplink symmetry
Average luminous power on the PON port: +2dbm ~ +7dbm
Optical acceptance senitivity of the PON port: not less than -30dBm
Security: ONU authentication mechanism
Network coverage diameter: 30 kilometers
Standard IEEE802.3ah
IEEE 802.1D, Spanning Tree
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
IEEE 802.3ad physical link static/dynamic aggregation (LACP)
Ethernet – II, Ethernet-SNAP
IEEE 802.3ad VLAN Stacking( Q in Q)
L3 functions Supporting static route
QoS Backpressure flow control (half duplex)
IEEE 802.3x flow control (full duplex)
IEEE p802.1p, CoS
WR, SP and FIFO
Supporting the Mark/Remark priority of 802.1P/DSCP
Limiting the uplink/downlink rate based on each ONU
Supporting DBA and SLA
VLAN Port-based VLAN
GVRP
IEEE802.1Q VLAN relay
Supporting QinQ and flexible QinQ
Multicast IGMP v1/v2/v3
IGMP Snooping
Multicast VLAN and limited multicast
Reliability Unidirectional Link Detection (UDLD)
Hot swap of the EPON optical module on the expanded slot
EAPS fast loopback protection function
Optical path protection of EPON
Network security Limiting the maximum number of users on each port
Port isolation
Controlling the storm of packets
Flow-based ACL access control function
Transmission data encryption on the PON interface
Configuration management Various management modes such as CLI, Web, SNMP, TELNET and cluster
RMONv1, group 1, group 2, group 3 and group 9
SSHv1/v2
Upgrading the software and the bootrom through TFTP and FTP
Local or the server’s syslog logs
Command prompt in English or in Chinese
Network testing tools such as ping and traceroute
Debug output
Physical Characters 442mm(W) x315mm(D) x 44mm(H)
Installation: A 19-inch cabinet
Weight: 2kg
Environment requirements Working condition: 0℃-55℃; 10%-85% no condensation
Storage condition: -40℃-80℃; 5%-95%; no condensation
Power Source Input voltage: AC100-240V
Input frequency: 47-63Hz
Supporting power input from two power sources
Input current: 1A/230V
Power consumption: Up to 40W
Order Information
Model Description
E8604T OLT device with 4 PON ports (1 console port, 1 out-band 10/100M port, 4 fixed PON ports (excluding the OLT SFP optical module), 2 gigabit combo ports, 2 gigabit SFP optical ports, 2 gigabit electric ports, AC90-264V power supply, single power source, 19-inch cabinet shape)
E8604T-DC OLT device with 4 PON ports (1 console port, 1 out-band 10/100M port, 4 fixed PON ports (excluding the OLT SFP optical module), 2 gigabit combo ports, 2 gigabit SFP optical ports, 2 gigabit electric ports, DC36-72V power supply, single power source, 19-inch cabinet shape)
E8604T-2AC OLT device with 4 PON ports (1 console port, 1 out-band 10/100M port, 4 fixed PON ports (excluding the OLT SFP optical module), 2 gigabit combo ports, 2 gigabit SFP optical ports, 2 gigabit electric ports, AC90-264V power supply, two power sources, 19-inch cabinet shape)
E8604T-2DC OLT device with 4 PON ports (1 console port, 1 out-band 10/100M port, 4 fixed PON ports (excluding the OLT SFP optical module), 2 gigabit combo ports, 2 gigabit SFP optical ports, 2 gigabit electric ports, DC36-72V power supply, two power sources, 19-inch cabinet shape)
OLT-GSFP-20 OLT SFP module, 20km, 1490nm TX wavelength, 1310nm RX wavelength, SC interface
