Connector in (Wholesale) 2.50 TAKA/Pcs

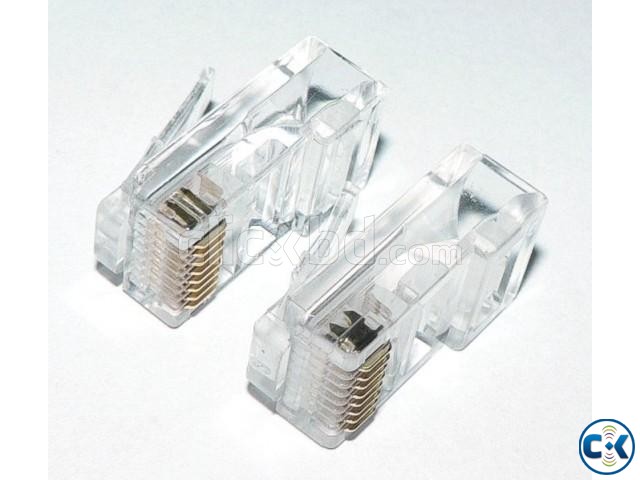

RJ45 Network Crimp Plugs Cat5 8P8C Lan Connector Network

This high quality and low cost RJ45 Connector is used for Cat5 cable. Makes a solid network connection. If you make your own patch cable, or just need to fix a cable end, this connector will provide what you need.

Specifications

1. UTP Cat5 / Cat5e connector
2. Contacts are nickel plated
3. Shell is PC material
4. Accept 2-26awg solid with a insulation 0.5mm
5. Designed For: Voice/Data applications
6. Housing: Polycarbonate and metal
7. Color: Clear / transparent

Technical Specificate:

IDC Contact: 50 micron Gold coated,0.5mm Wire Dia. IDC connection =200 times
Contact Resistance: =2.5 M ohm
Insulation Resistance: =1000 M ohm
Dielectric Strength: DC1000V or AC700V in 1 min.,No Arc & Spark-over.
Life Span: Plug/Pull =750 times

Feature:
1)All connector available.
RJ45 Connector male UTP, RJ11 / RJ12 / RJ45 / RJ48 all specifications available

2)Patent connector.
Patented Cat.5e/Cat.6 UTP / FTP shield/unshield connector

3)Best quality imported material.
Imported polycarbonate material with good transparency and flexibility

3)Fully compatible with different Jack
Designed according to FCC standard

4)UL certified RJ45 connecor UTP
94-V0 94-V2 plugs are UL certificated

Name of the pin function
1. TX_D1 + to send data (+)
2. TX_D1 to send data (-) -
3. RX_D2 + (receive data +)
4. BI_D3 + two-way data (+)
5. BI_D3 two-way data (-) -
6. RX_D2 - (receive data -)
7. BI_D4 + two-way data (+)
8. BI_D4- two-way data (-)

Minimum Order Quantity: 300 Pieces
Price: 2.50 tk/Pieces (wholesale)

----------------------------------------------
