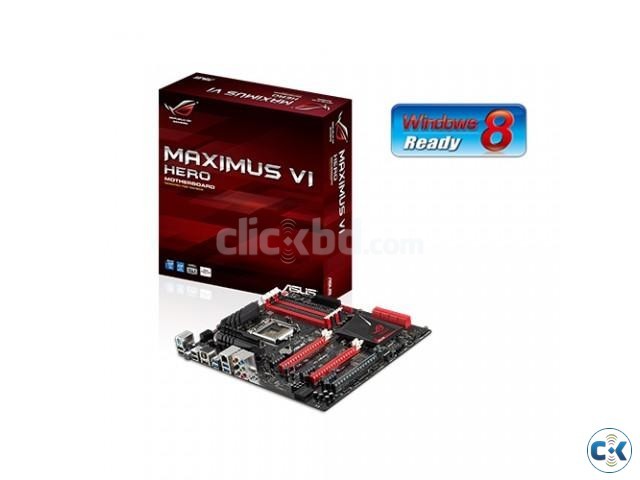

BRAND NEW INTAKE BOX, BOUGHT FORM NEWEGG More accessible while packing major ROG feature LGA1150 socket for 4th Generation Intel®Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors Intel® Z87 Express Chipset SupremeFX - Supremacy through discrete-caliber audio Sonic Radar - Scan and detect to dominate Extreme Engine Digi+ III - Hardcore power delivery with premium components GameFirst II + Intel LAN - Put Your Frags First CPU Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 22 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list Chipset Intel® Z87 Memory 4 x DIMM, Max. 32GB, DDR3 3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics Processor - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red) 1 x PCIe 2.0 x16 (black) *1 3 x PCIe 2.0 x1 *2 Storage Intel® Z87 chipset : 6 x SATA 6Gb/s port(s), red Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *3 ASMedia® ASM1061 controller : *4 2 x SATA 6Gb/s port(s), red LAN Intel® I217V, 1 x Gigabit LAN Controller(s) Audio ROG SupremeFX 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : - SupremeFX Shielding™ Technology - ELNA premium audio capacitors - Blu-ray audio layer Content Protection - Sonic Radar - DTS Connect - Optical S/PDIF out port(s) at back panel USB Ports Intel® Z87 chipset : *5 6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) Intel® Z87 chipset : *6 8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board) ROG Exclusive Features Extreme Engine Digi+ III : - 8 + 2 phase power design - NexFET™ Power Block MOSFET - 60A BlackWing Chokes - 10K Black Metallic Capacitors UEFI BIOS features : - ROG BIOS Print - GPU.DIMM Post - Tweakers' Paradise - ROG SSD Secure Erase ROG RAMDisk GameFirst II Extreme Tweaker Special Features ASUS Dual Intelligent Processors 4 with 4-Way Optimization : - The tuning key perfectly consolidates ASUS-exclusive DIGI+ Power Control, TPU, EPU, and Fan Xpert 2 optimize the digital power setting, system performance, power saving and whole system cooling configuration CPU Level Up ASUS Exclusive Features : - USB BIOS Flashback - MemOK! - AI Suite 3 - Ai Charger - USB Charger+ - USB 3.0 Boost - Disk Unlocker ASUS EZ DIY : - ASUS O.C. Profile - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall) Operating System Support Windows® 8 Windows® 7 Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.0 4 x USB 2.0 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x USB BIOS Flashback Button(s) Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x S/PDIF out header(s) 1 x 8-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x DirectKey Button(s) 1 x DRCT header(s) 1 x MemOK! button(s) 1 x Power-on button(s) 1 x Reset button(s) 1 x Clear CMOS jumper(s) 1 x ROG extension (ROG_EXT) header(s) Accessories User's manual I/O Shield 6 x SATA 6Gb/s cable(s) 1 x SLI bridge(s) 1 x Q-connector(s) (2 in 1) 1 x 12 in 1 ROG Cable Label(s) 1 x ROG Door Hanger(s) BIOS 64Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a Multi-Language BIOS Manageability WfM 2.0, DMI 2.7, WOL by PME, PXE Support Disc Drivers ROG GameFirst II ROG RAMDisk ROG CPU-Z ROG Mem TweakIt Kaspersky® Anti-Virus DAEMON Tools Pro Standard ASUS WebStorage ASUS Utilities Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) Note *1: The PCIe 2.0 x16 slot (PCIEX4_3) supports up to x4 mode. It shares bandwidth with PCIe 2.0 x1 slots. The default setting is x1 mode. *2: The PCIe 2.0 x1 slots (PCIEX1_1/2/3) will be disabled when PCIe 2.0 x16 slot (PCIEX4_3 ) operates under x4 speed. *3: The supported functions depends on the CPU installed. *4: These SATA ports are for data hard drives only. ATAPI devices are not supported. *5: Support ASUS USB 3.0 Boost, UASP standard on the Intel native USB 3.0 is only supported under Windows® 8. *6: 2 x USB2.0 ports at mid-board shares with ROG extension (ROG_EXT) port. PRIZE DAM FIX LINK= http://www.asus.com/Motherboards/MAXIMUS_VI_HERO/#overview Contact= 01915972749 EMAIL= [email protected] THX SAYED. |
